Product details

INTRODUCTION

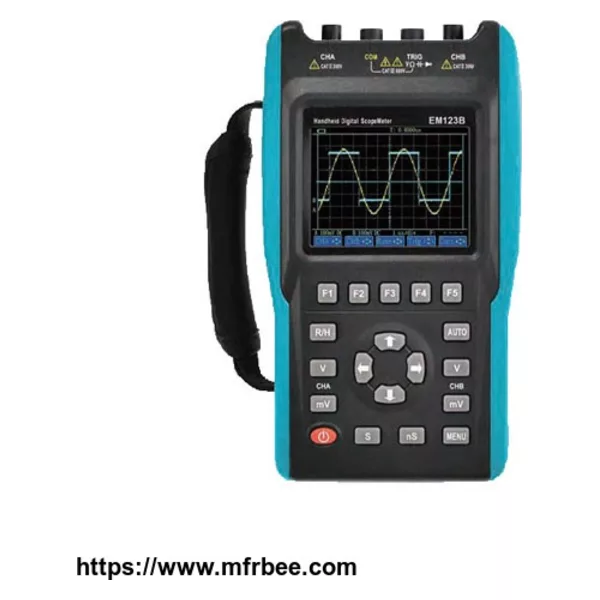

Automotive oscilloscope can capture real-time to ignition, electronic control system sensor waveforms by analyzing the collected sensor waveform can accurately diagnose whether the sensor fault, by the ignition waveform analysis can not only diagnose the ignition system, spark plugs, high voltage, ignition coil and other component failure, you can analyze the possible points of failure air intake system and fuel system to provide a scientific basis for the technical condition of operation and fault diagnosis of the car.

Automotive electronic signal should have amplitude, frequency, shape, pulse width, an array of five parameters. Automotive oscilliscope can show all cars eletronic signals. By waveform analysis, you may find fault circuit in various parts of the sensors, actuators and circuits and ECU or the like.

Automotive electronic measurement: sensors, actuators, ignition systems, electrical component testing, Automotive eletronic signal measurement: 51 kinds of common standard reference waveform, and automatically set the amplitude and time base.

SPECIFICATION

Scope indicator


  • Bandwidth: 20MHz
  • Channel: 2
  • Raise Time: 17.5ns
  • Sampling Rate: 100MSa/S
  • Horizontal Sensitivity: 10ns/div~2h/div
  • Horizontal Precision: ≦ ±(0.01%+1pixel)
  • Vertical Sensitivity: 10mV/div~500V/div
  • VerticalPrecision:≦ ±(3%+1pixel)
  • Vertical Distinguishability: 8Bit
  • Maximum Input Voltage: DC or AC 600 Vrms
  • Trigger Source: CHA,CHB,External trigger
  • Trigger Mode: Normal, Auto, Single
  • TriggerSensitivity:≦1.0 div
  • Trigger Coupling: AC, DC
  • Cursor Measure: Time and Volt ΔT ΔV
  • Save\Recall: 10 Groups of Waveforms and 10 Groups of parameters
  • Record length: 512 (per channel)
  • Display Mode: Dots Display, Vectors Display
  • Screen Display: 3.5" TFT LCD 52mm×70mm Screen; 240×320 Dots;
  • Input Impedence: 1 MΩ, ≦20pF
  • Reference waveforms: 51 waveforms and setup


Multimeterindicator


  • DC(V): 600mV/6V/60V/600V/1000V
  • AC(V): 600mV/6V/60V/600V/1000V
  • Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60Ω
  • CAP:≦2V
  • On/Off Test: Lower 50Ω, Beep
  • Automotive: CCA100-2000
  • Battery Test
