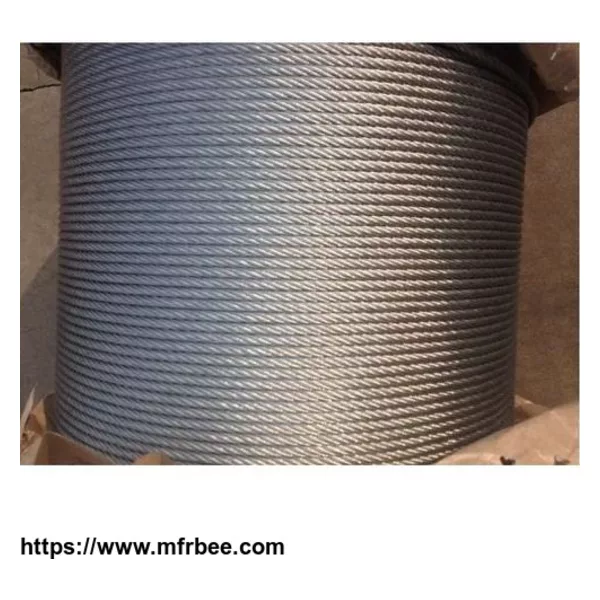

Line Contacted Steel Wire Rope

Surface treatment: ungalvanized and galvanized
Standard: AISI, ASTM, GB, JIS, DIN, EN
Construction: 8X19S+FC 6X19S+IWR 6X19W+FC 6X19W+IWR
6X25FI 6X29FI 6X26SW 6X31SW 6X36SW 6X37S 6X41SW 6X49SWS 6X55SWS
8X25FI 8X26SW 8X31SW 8X36SW 8X41SW 8X49SWS 8X55SWS
Diameter: 2mm to 60mm
Tensile strength: 1570N/mm2 1670N/mm2 1770N/mm2 1870N/mm2 1960N/mm2
Certificate: ISO
Packaging: 500m/reel, 1000m/reel

Packaging: Export packaging
500m/reel, 1000m/reel, 2000m/reel, 5000m/reel, etc.
Inner packing:
Wooden reel and craft paper
Outer packing:
Wooden pallet or according to requests

How to order:
In ordering steel wire rope, you are requested to give us complete information as specified below:
a.Purpose: For which rope will be used.
b.Size: Diameter of the rope in millimeter or inches
c.Construction: Number of strands, number of wires per strand and type of strand construction.
d.Type of Core: Fiber core( FC), independent wire rope core(IWRC) or independent wire strand core(IWSC).
e.Lay: Right regular lay, left regular lay, right lang lay, left lang lay.
f.Coating: Bright(ungalvanized), galvanized or stainless, PVC or Grease.
g.Grade of wire: Tensile strength of wires.
h.Breaking Load: Minimum or calculated breaking load in tones or pounds.
i.Lubrication: Whether lubrication is desired or not, and required lubricant.
j.Length: Length of wire rope.
k.Packing: In coils wrapped with oil paper and hessian(orp.p) cloth, or on wooden reels.
l.Quantity: By number of coils or reels, by length or weight.m.
Remarks: Shipping marks and any other special requirement.
