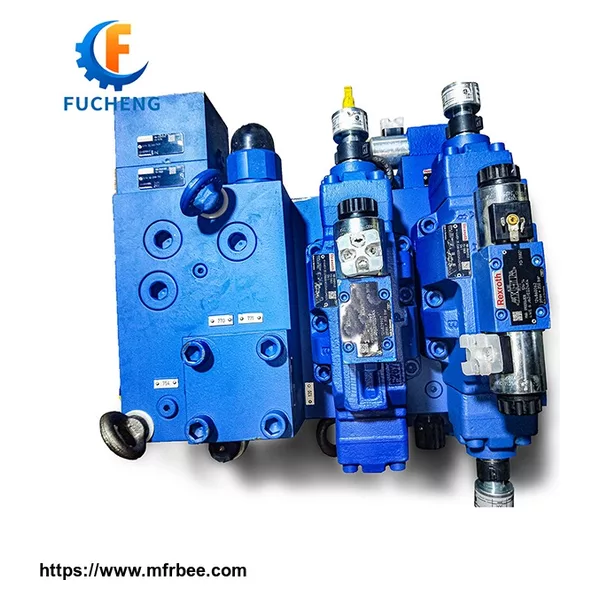

Directional Valve Rexroth for Hydraulic Power

Directional Valve Rexroth for Hydraulic Power

Features:

Directional Valves of type WE are solenoid-actuated Directional Spool Valves.

They control the start, stop and direction of a flow.

The directional valves basically consist of the housing, one or two solenoids,

The control spool, and one or two return springs.

In the de-energized condition, control spool is held in the central position or in the initial position by the return springs.

The control spool is actuated by wet-pin solenoids.

The force of the solenoid acts via the plunger on the control spool and pushes the latter from its rest position to the required end position.

In this way, the required direction of flow according to the symbol is released.

After de-excitation of the solenoid, the return spring pushes the control spool back to its rest position.

The manual override allows control spool to be moved without solenoid energization.

Size Information

Direct operated, solenoid actuated directional spool valve high performance version.

Porting pattem to DIN 24 340 form A, ISO 4401 and CETOP-RP 121 H

Wet pin AC or DC solenoids with removable coil.

Solenoid coil can be rotated through 90°

Coils can be replaced without releasing any fluid.

Choice of either central or individual electrical connections.

Optional hand emergency.

FAQ

Q1: I want to buy your products, how can I pay?

A :You can pay via T/T , WEST UNION or other payment terms we reach agreement.

Q2: How can you guarantee the quality?

A: One year's warranty against B/L date.

Q3: If we don't find what we want on your website, what should we do?

A: You can email us the descriptions and pictures of the products you need。

We will check whether we can make it.

Q4: Can we buy 1 pc of each item for quality testing?

A: Yes, we understand quality test is important and we are glad to send 1pc for quality testing.

Q5: What is the lead time?

A: For this product, normally 3 days,3 days and lead time is calculated from the day we receive your deposit.
