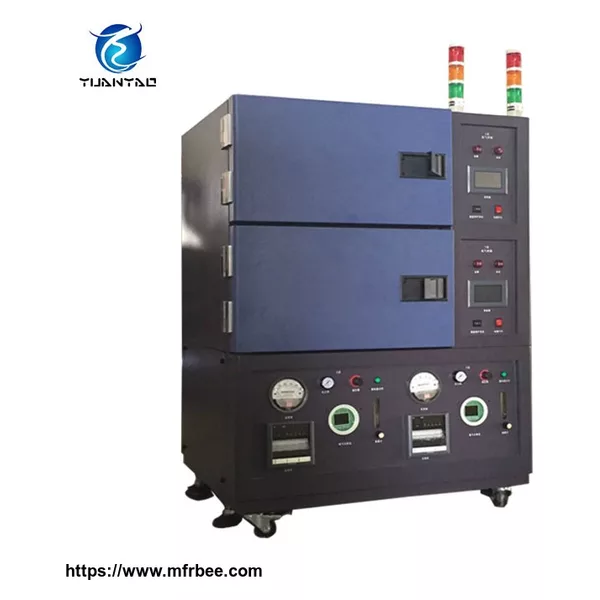

Nitrogen oven can provide a stable test space for pre-heating, drying, aging test. It supplies precision temperature controller with high stability of platinum resistance to temperature that makes temperature well-distribution High Temperature Industrial Heating Oven can provide a stable testing space and environment for pre-heating, drying, changes about physics and chemistry testing. It's precision temperature controller with high stability of platinum resistance to temperature that makes temperature well-distribution.
Advantage
1) Adopts microcomputer electronic data control, precise and reliable.
2) The insulation packing is mounded by silicone, highly temperature-enduring and anti-aging.
3)Heating by compulsory circulating ventilation, temperature rising fast and uniform distribution.
Advanced Microprocessor PID Controls
1) Bright LED display of actual and setpoint temperatures
2) Built-in 12-hour mechanical timer along with user-adjustable safety thermostat allows for power cut-out in case of overtemperature
3) Highly responsive RTD sensor provides temperature sensitivity of ± 0.1° C or better
4) High efficiency insulation ensures uniformity ± 0.5° At 100° C
Specification
Model | YPOD-072 | YPOD-270 | YPOD-480 | YPOD-600 | YPOD-720 | YPOD-1000 |
Inner chamber size W×H×D(cm) | 40×45×40 | 60×90×50 | 80×100×60 | 100×100×60 | 120×100×60 | 120×100×85 |
Exterior chamber size W×H×D(cm) | 70×105×55 | 90×160×65 | 110×170×75 | 130×170×75 | 150×170×75 | 150×100×100 |
Temperature range | RT +10ºC~200ºC (300ºC) | |||||
Temp.humi.fluctuation | ±0.3ºC | |||||
Temp.humi.uniformity | ±1ºC | |||||
Temp.humi.reslution | 0.1ºC | |||||
Heating-up time | 30min |
Exterior chamber material | Cold rolled plate + Powder coating |
Interior chamber material | SUS#304 Stainless steel (Use SUS#201 when max.temp.is below 200ºC) |
Insulation material | PU & fibergalss |
Wind circulation | Cooling fan |
Heating system | SUS#Stainless steel high-speed heater |
Controlling system | CAHO H961KV02 controller (Taiwan) |
Other components | Cable port(dia.50mm),control status indicator,loading shelf (2 pcs,position-adjustable) |
Safety protection device | Over-heat protection circuit breaker, overload protection,overload indicator lamp |
Power supply | AC 3 phase 380V 60/50HZ |
Customization service | Non-standard or special requirements are all welcome |
