Drill Pipe Wiper Foam Balls

Drill pipe wiper foam ballspH-Value 6.00 – 7.00. That is industrial laboratory verified value for cementing usage of our tool. Developer is having up to date technical reports periodically. The firm opens purchasers test results of MERITs products per order. Utensil is 100 percent compatible in gasoline fields worldwide certified by third party inspection bodies.

Foam wiper balls be able to wipe the I.D of drill pipe or tubing strings of cement, fluids or debris. They will be used to separate fluids. Wiper Balls should be made of high quality natural rubber and can be used in a temperature range of 40°F(4°C) to 302°F(150°C). The balls should be able to pass through small restrictions without being damage. Wiper Balls can be loaded into drill pipe or tubing connections easily passing through internal upset restrictions such as mechanical settings tools, diverters, and liner running tools.

Specifications,

· Size: 150mm + 2mmt

· Density: 160-180kg/m3

· Weight: 350g+20g

· Typical wiping Range: 4.75” to 2.00” (120.70mm to 50.8mm)

· Minimum Restriction: 0.875” (22.2mm)

· Material: Natural Rubber

· Elongation at Break: 920%

· Tensile Strength: 28N/m2

· Heat/Cold Consistency: +80°C/-40°C

That drillpipefoam wiper ballproduced from typical natural rubber material. That’s why this device is pro-qualified component for oil & gas fields after cementing erasing work. The reason there is no any damages to inside pipeline or casing components. We are lowering buyers costs in all horizontal lines.

Cementing Drill Pipe Wiper Ball Drop Launcher 4-1/2” IF.

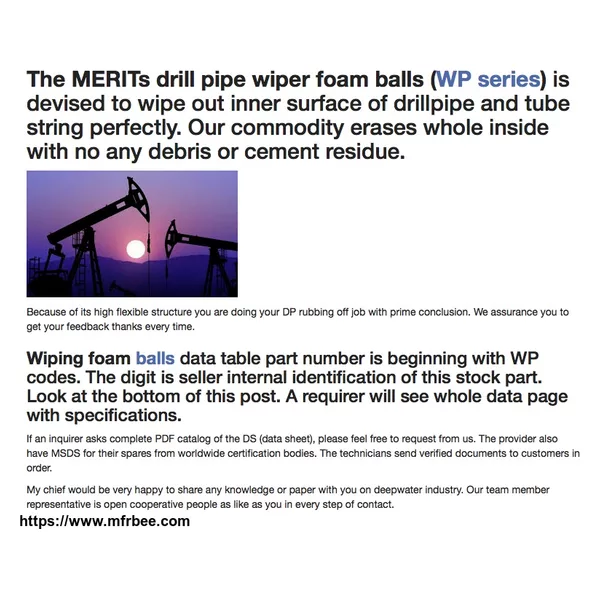

The MERITs drill pipe wiper foam balls (WP seriesis devised to wipe out inner surface of drillpipe and tube string perfectly. Ourcommodity erases whole inside with no any debris or cement residue.

Because of its high flexible structure you are doing your DP rubbing off job with prime conclusion. We assurance you to get your feedback thanks every time.

Wiping foam ballsdata table part number is beginning with WP codes. The digit is seller internal identification of this stock part. Look at the bottom of this post. A requirer will see whole data page with specifications.

If an inquirer asks complete PDF catalog of the DS (data sheet), please feel free to request from us. The provider also have MSDS for their spares from worldwide certification bodies. The technicians send verified documents to customers in order.

My chief would be very happy to share any knowledge or paper with you on deepwater industry. Our team member representative is open cooperative people as like as you in every step of contact.

My company transmit this main helping part of cementing job into your oil-gas field address all over the globe. Especially we are able deliver in all over the world petroleum extraction areas offshore and onshore. The reason why you can ask us quote to include freight. Air, road or see dispatch possible for us.

Addition team prefers express cargo also for urgent customer demand. Crew are all open mind businessmen as like as you. They listen you. The reason why you will be welcome every proposal.

Merit Automotive Turkey Wiper Ball.

From CA to UAE we are hauling deepwater supplies around every day every week. Because of we have a speed delivery depot in Istanbul city of Turkey. It is very close to main airport in the city. Your purchases deliver just in time.

Temperature range of 40°F (4°C) to 302°F (150°C).
Parting stretch of 380 to 440%.
Diameter 1 inch to 14 inch.

MERIT Able To Deliver Oil Field Wiper Foam Ball To Norway.

Best seller merchandise at MERIT isWP10006. General size reference of it is 6.00 in. Actual size of 5.91 in. Thus its typical wiping range 4.75 to 2.00 in. In addition minimum restriction of it is 0.875 in.

An other best-seller part at MERIT is WP10007

Oil Field Service Foam Wiper Ball.

By the way we are also manufacturing custom size and specific features apparatus to sector giants. Once upon a tşme we generated a 11″ appliance for a big petroleum consortium in Iraq oil terrain. They use our gadget for their gas area. He reported us after use of our mechanism that saving of 22,000.00US$ per job. We have got a thanking mail from this holding administration.

Additionally we had produced 10 in to Chinese petroleum sector supply firm. It is also reflected us good feedback. He emailed us that WP10010 is solved their problem of wiping at lowest cost. 10″ gave him profit 18,000.00US$.

After a very short time of CN consortium PO a Thailand oil company came us and wanted 10 inches, too. We produced them for him within ten days. We shipped quickly. They profited from our ten inch device.

In addition the maker were outcome 9 inch wiper foam balls to a huge gas group from Canada. The presenter gained buyers good approach with few purchase orders. Now trust are still preferring us with their needs.

Finally I leave here a info leaf for DPFWB:

General Size Reference in.(mm)	Actual Size in.(mm)	Part No	Typical wiping range in. (mm)	Minimal restriction*** in. (mm)
3.00 (76.10)	3.15 (80)	WP10003	2.5 to 1.10 (63.5 to 27.90)	0.500 (12.7)
4.00 (102.00)	3.94 (100)	WP10004	3.12 to 1.38 (79.20 to 35.10)	0.625 (15.9)
5.00 (127.00)	4.92 (125)	WP10005	4.00 to 1.75 (101.60 to 44.50)	0.750 (19.1)
6.00 (152.40)	5.91 (150)	WP10006	4.75 to 2.00 (120.70 to 50.80)	0.875 (22.20)
7.00 (178.10)	6.89 (175)	WP10007	5.50 to 2.38 (139.70 to 60.50)	1.000 (25.40)
8.00 (203.00)	7.87 (200)	WP10008	7.00 to 3.00 (177.80 to 76.20)	1.375 (34.90)
9.00 (225.00)	8.85 (225)	WP10009	8.00 to 3.20 (203.20 to 81.28)	1.440 (36.58)
10.00 (250.00)	9.84 (250)	WP10010	8.40 to3.51 ( 213.35 to 89.15)	1.500 (38.10)
11.00 (275.00)	10.82 (275)	WP10011	8.75 to 3.75 (222.30 to 95.30)	1.750(44.50)
12.00 (300.00)	11.81 (300)	WP10012	9.00 to 4.32 (228.60to 109.73)	2.000 (50.80)

A Case History:

The customer was spending up to three more hours on trips out of the hole to clean out cement. They wanted to wipe a drill pipe wipe after performing a shoe squeeze through 5-in. drill pipe with an 8 1/2-in. bit with three 20/64th nozzles installed. The squeeze was done at 9,200 ft (2804 m) TVD/MD with a bottom hole circulating temperature of 165°F. A 7-in. drill pipe foam wiper ball was recommended because it can pass through a 1-in. restriction. The 7-in. wiper foam ball wiped the drillpipe successfully and passed through the bit with little increase in pump pressure. The customer was very pleased with the wiping action and versatility of Merit’s foam wiper balls.

An Other Case History:

On a North Sea well, MERIT drill pipe wiper foam balls were applied through 3051 meters of 5-in. drill pipe and 258 meters of 3-1/2-in. drilling pipe.The MERITs foam wiper ball removed cement scale from the drillpipe ID a cement plug was set. The customer was pleased with the results and no leftover cement was reported in the drillpipe.
