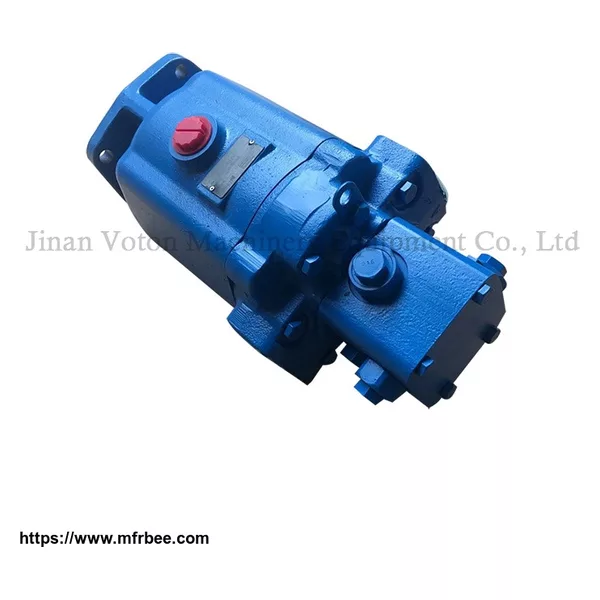

Eaton Hydraulic Motor
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- China
- Packaging
- wood box
- Delivery
- As your demand
Specifications
Eaton Hydraulic Motor
| Model |
Displacement cm3/r [ in3/rev] |
Flow lpm [gpm] |
Rotating speed rpm High/Low |
preset pressure bar [psi] |
Peak pressure bar [psi] |
Charge Pressure bar [psi] |
Torque nm lbf-in] |
| 46 | 75,3 [4.6] @18o | 332 [85] | 4160/ 50 | 240 [3500]d | 415 [6000] | 11 [160] | 556 [4916] |
| 54 | 89,1 [5.44] @18o | 337 [89] | 3720/ 50 | 240bar [3500] | 415bar [6000] | 11 [160] | 556 [4916] |
| 64 | 105,5 [6.44] @18o | 409 [108] | 3720/50 | 240 [3500] | 415 [6000] | 11 [160] | 656 [5807] |
Product description:5433-138 (mainly used in 8-10M3 concrete mixer truck)
Model description:
HHD Product Series-Hydrostatic Transmission-Heavy-Duty Fixed Motor
54 Displacement 89.13cm3/r[5.439in3/r] (18 degree swash plate swing angle)
3 Type-Fixed Motor
3 Design Series-Fixed Gap Series (MOEDLS 33 64)
21 Output shaft 21 teeth 16/32 pitch spline, (MODELS 33 54)
B Main port [1.00] 1 inch flange port CODE 62 PER SAE J518
B Rear cover and valve block-Standard rear cover with integrated valve block (with shuttle valve)
1 Charge pressure control valve-standard
B Charge pressure control valve pressure setting 11bar[160ibfi/n2]
1 A port high pressure relief valve-standard
K A port high pressure relief valve pressure setting 345 bar [5000ilf/in2]
1 B port high pressure relief valve-standard
K B port high pressure relief valve pressure setting 345 bar[5000ibf/in2]
0 Speed sensor-None
00 Special performance-None
0 Paint and packaging-spray blue primer (standard)
0 Machine identification-standard
B Design code -B
6433- 042 (mainly used in 10 12M3 concrete mixer truck)
