PSA Oxygen Generator/System

Technology Brief:

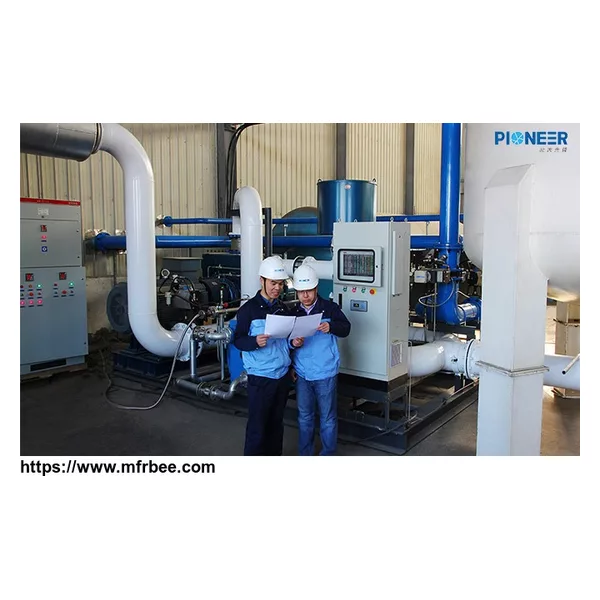

There has been a growing demand for small and medium - sized oxygen equipment with rapid development of the national economy in recent years. Beijing Peking University Pioneer Technology Co. , Ltd. (hereinafter referred to as PIONEER), seizing this market opportunity with its advanced technology and engineering experience of more than 100 sets of oxygen equipment, has produced the customized the new skid - mounted PSA oxygen equipment through its continuous development and innovation. The PSA - O2 generator meets a wide range of requirements for users in need of small and medium - sized oxygen equipment. It has remarkable advantages on its stability, simplicity, efficiency and energy saving.

Production Capacity
50Nm3/h - 450Nm3/h, equivalent to liquid oxygen of about 1.7 TPD – 15.4 TPD.

Typical Applications
The PSA - O2 generator is widely used in water treatment, flue gas ozone denitrification, kiln combustion, pulp bleaching, aquaculture, medical and other fields…

Technical Advantages
1. Advanced single - vessel process
Compared with the traditional double - vessel process, the world - leading single - vessel process requires less equipment but brings more stable performance with easier operation and maintenance.

2. High efficiency lithium - based molecular sieve
The third generation of high - efficiency lithium - based oxygen generation molecular sieve (PU - 8) has a lithium ion exchange rate of over 99% , bringing plenty of advantages such as high strength, high nitrogen and oxygen selectivity, large bulk density, uniform particles, long service life, etc. In combination with the proprietary automatic filling technology, the stability of the molecular sieve bed is effectively guaranteed.

3. Special valves for oxygen generation
Special valves for oxygen generation are more suitable for VPSA oxygen process, offering good sealing, fast switching speed, stable performance and other characteristics, along with outstanding low failure rate and easy maintenance.

4. Modular integrated design
Compared with the conventional double - vessel process, the equipment is more compact and the plot area can be reduced by more than 20% .

5. Low operation cost
The power consumption of oxygen is as low as 0.35kWh/Nm3, the annual maintenance cost is 30% lower than that of a common PSA oxygen generator. The annual comprehensive operation cost is also reduced by more than 50% , compared with the cost of common PSA oxygen generator or purchasing liquid oxygen.

Technical Principle
Adsorption process: the pressurized ambient air is passed through the adsorption vessel, where the impurities (i. e. predominantly nitrogen) are preferentially adsorbed by the molecular sieve. Oxygen is enriched at the top of the adsorption vessel, then enters an oxygen buffer tank to supply oxygen to the downstream;

Desorption process: after the molecular sieve is saturated by adsorption, the valve is switched to allow the blower to reverse act and vacuumize, thus restoring the adsorption capacity of the molecular sieve. In this stage, oxygen is continuously supplied to the downstream from the oxygen buffer tank.
