UV puck LS132
Product Quick Detail
- FOB Price
- USD $148.00 / Piece
- Place Of Origin
- China(Mainland)
- Minimum Order
- 1
- Packaging
- 1 pc per box
- Delivery
- 12 Days
Specifications

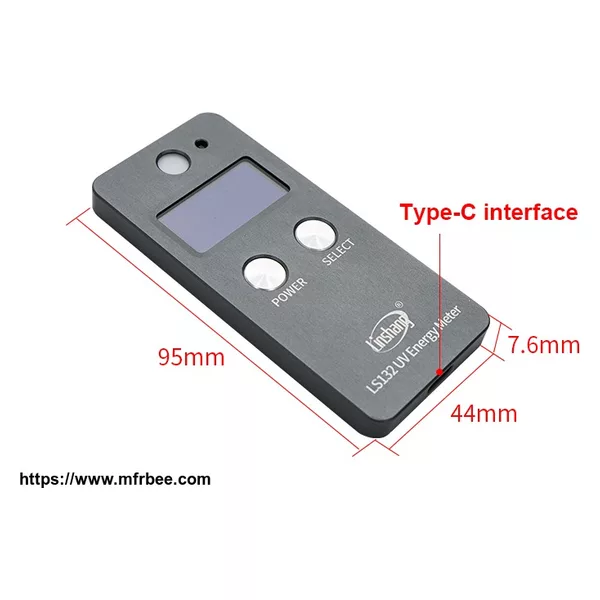

1. With a thickness of only 7.6mm and a width of 44mm, there is no need to worry about being limited by the measurement space.
2. The sampling speed of 2048 times per second provides accurate data for the UV energy meter and can pass and obtain the calibration certificate from China Institute of Metrology.
3. The real-time power value can be dynamically displayed during measurement and the accumulated UV energy value and the maximum power value can be automatically counted after the measurement is
completed.
| Application | Light intensity, energy and temperature measurement of high pressure mercury lamp |
| Spectral range | 315nm --- 400nm, λp = 365nm |
| Power measuring range | 0 --- 2000 mW/cm² |
| Power resolution | 0.1 mW/cm² |
| Energy measuring range | 0 - 999999mJ/cm² |
| Energy measuring accuracy | ± 10% , ± 5% (typical) |
| Sampling speed | 2048 times/second |
| Recording period | 32 min |
| Power supply | Rechargeable lithium battery 3.7V@400mAh |
| Display | 128X64 Dot matrix OLED |
| Dimension | 95mm X 44mm X7.6mm(L*W*H) |
| Weight | 57g |
