1. IEC 61730 Impactor and Impact Test Frame

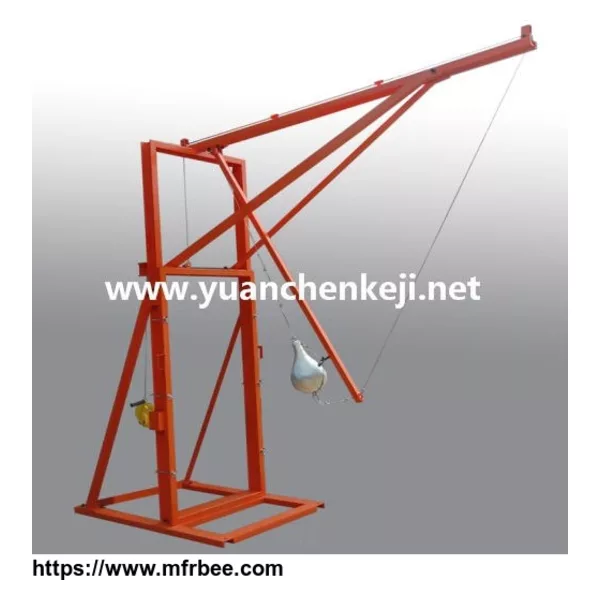

2. 45 kg impactor and 1525 mm * 2480 mm impactor frame for IEC 61730
Apparatus:
1. The impactor should be a bag made of suitable material and capable of being filled to the required weight with suitable filling materials (such as steel balls or pellets).
The outside of the bag should be wrapped with tape. When filled, the size of the impact bag should be as shown in the figure below, and the weight should be 45.5 kg + 0.5 kg. The ratio of the widest diameter to the height is between 1:1,5 to 1:1,4.
2. The test frame similar to the figure below will not minimize movement and deformation during the test. The structural frame and support should be steel channels (approximately 100 mm x 200 mm or larger). The frame should be welded or bolted firmly at the corners to minimize distortion during impact. It should also be bolted to the floor to prevent movement during the impact test.
IEC 61730-2 Photovoltaic (PV) Module Safety Certification-Part 2: Test Requirements 10.21 Module Break Test MST 32
Shot Bag Impactor Reinforced leather bag filled with chilled lead shot. Technical Data: Weight: 45kg±0.1kg 46kg±0.1kg Height: 330mm ± 13mm Max diameter: 250mm Leather thickness: 1.5mm Lead sand size: 2.5mm Customized: 25kg /48kg ...
45kg/46kg shot bag and 50kg Pneumatic Tyres Impactor. Processed in accordance with ANSI Z91.1, ISO 3537, BS EN 12600 and AS NZS 2208. Related Standards: AS/NZS 2208 Safety glazing materials in buildings – Appendix D: Impact Test GB 15763.3 Safety glazing materials in building ...
