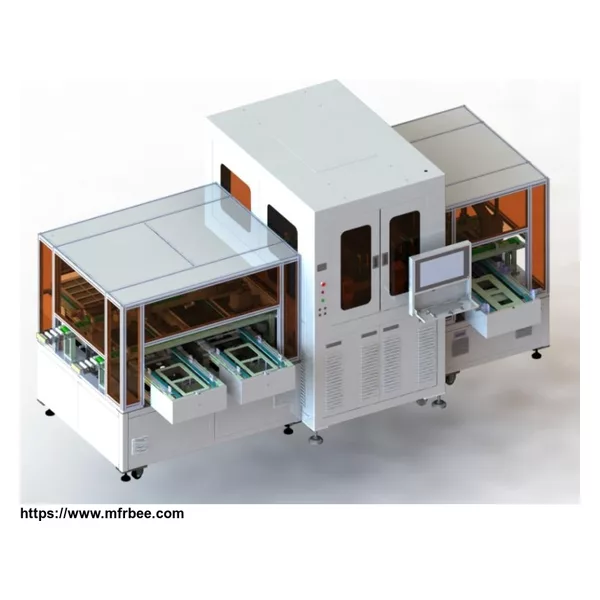

AOI Mobile phone Glass Cover Appearance Defect Inspection Equipment

Minimum Order
1
Cycle Time
5s/pcs
Workpiece Size
70mm×146mm
External Dimension
1205m×975mm×1700mm ( Inspection machine)
External Dimension
2100mmx1600mm×1700mm(Unloading machine)
Place Of Origin
China
Detection Accuracy
<10um
Overall Weight
3000Kg
External Dimension
2100mm×1150mm×1700mm( Loading machine)
Packaging
1 set in 1 carton
Delivery
in 90 days

Main function

This Automatic Inspection Equipment can not only detect external dimension and common defects of the mobile phone glass cover, such as scratches, crushes, bubbles, black and white dots, dirt. With our specific lighting design and software algorithms, it can also detect other defects which are more difficult to recognize, including ridges/lines indentation, arc collapse, impermeability, color difference and bright edges.

Features

1. High contrast, high resolution;

2. Double assembly line, single/dual channel lighting design, double inspection position ;

3. Super bright LED unit provides maximum illuminance;

Parameters

Cycle time 5s/pcs
Detection accuracy <10um
Workpiecesize 70mm×146mm ( customized to customers’ needs)
Manipulator strokeof Unloading machine axis in X and Y direction:±565mm,

axis in Z direction :425mm

Maximum power consumption <6KW
External dimension 1205m×975mm×1700mm ( Inspection machine)
2100mm×1150mm×1700mm( Loading machine)
2100mmx1600mm×1700mm(Unloading machine)
Overall weight 3000Kg
