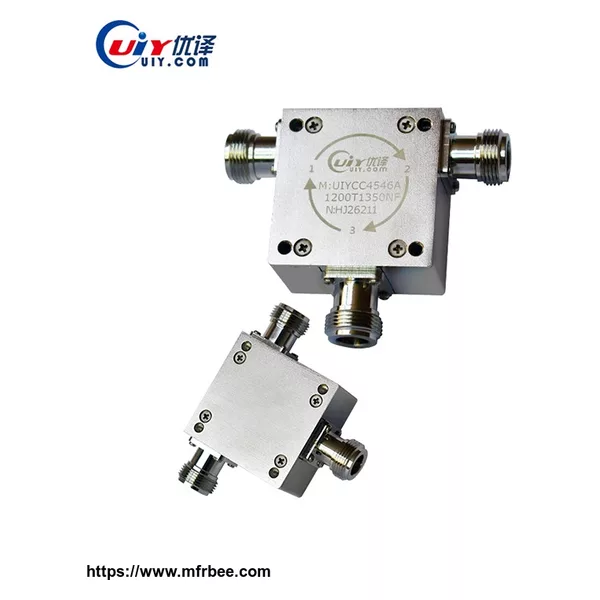

UIY RF Circulator 1000-3800MHz Coaxial Circulator
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
UIY RF Circulator 1000-3800MHz Coaxial Circulator
Model: UIYCC4546A
Place of Origin: Shenzhen of China (Mainland)
Product Name: (Radio Frequency) RF Component - Coaxial Circulator
Frequency Range: 1.0-3.8GHz
Band Width Max.: 0.15
Insertion Loss Max (dB): 0.3
Isolation Min (dB): 23
VSWR Max: 1.2
Forward Power(W): 600
Reverse Power(W): 600
Connector Type: N
- Country: China (Mainland)
- Business Type:
- Market:
- Founded Year:2003
- Address:
- Contact:Linda Lam
