Tecco Mesh

10
100
1000
1
Place Of Origin
Anping County, Hebei Province
Packaging
In Rolls, or as requested
Delivery
15 Days

Tecco Mesh Description

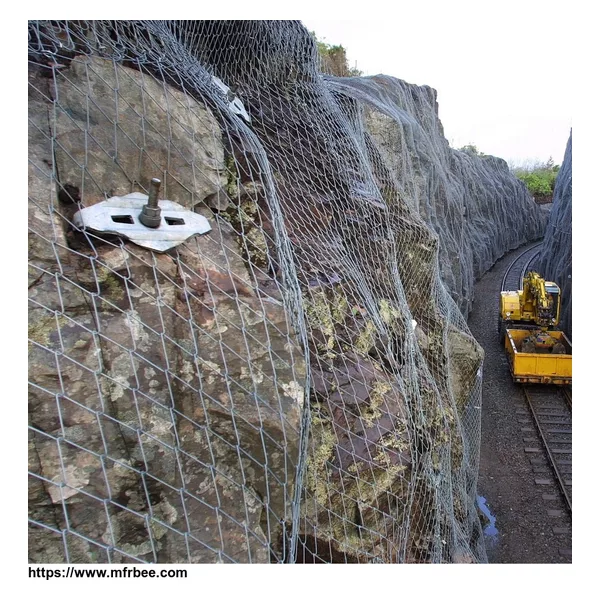

Tecco mesh is made of high tensile steel wire. Tecco mesh system is a kind of active rockfall barrier system, including tecco mesh, wire rope anchor, spike plate, boundary rope, sewing rope and steel clips. With the wire ropes and steel clips, the tecco mesh is fastened onto the mountain or slope surface tightly and firmly to block the large stones and reduce the damage of landslip or debris flow.


Tecco Mesh Specification

Materia: High carbon steel wire.
Surface treatment: Hot dipped galvanized, zinc-aluminum coated.
Zinc thickness: No less than 150 g/m2.
Wire diameter: 3 mm, 4 mm.
Mesh type: Rhomboid hole.
Mesh size : 65 mm inscribed circle diameter.
Tensile strength: Minimum 1770 MPa.
Braking load of single wire: 12.5 kN.
Mesh roll width: 1–3.5 m.
Mesh roll length:10–30 m.
Fitting : Steel anchor, claw type spike plate, soil or rock nails, clips, sewing rope, boundary rope. (The steel anchor is made of deformed steel bar of 25 mm diameter)


Tecco Mesh Feature
High safety and tensile strength.
Rhomboid mesh structure for stability.
Corrosion and rust resistance.
Environmental friendly for plant growth.
Easy to install and transport.
Durable and long service life.

Tecco Mesh Application
The tecco mesh is usually installed on soil or rocky textured surfaces such as mountains and slopes to prevent falling rocks and to ensure plant growth. In addition, it can be used to control water, soil loss and external soil spray sowing.
