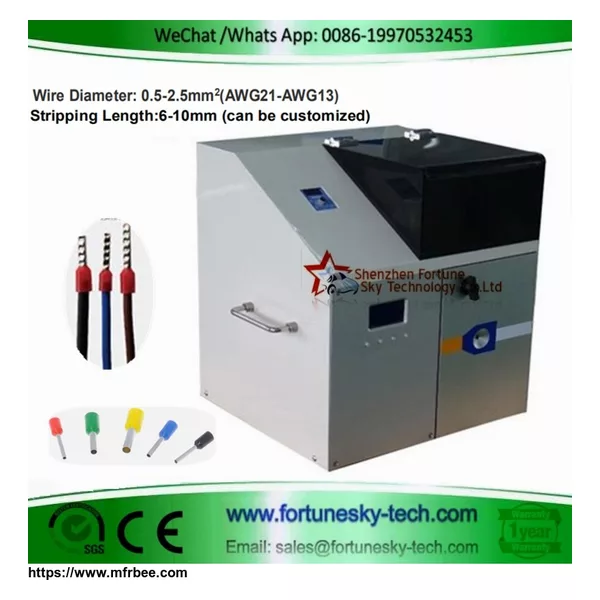

Automatic wire threading stripping ferrule crimping machine crimping tubular terminals is mainly aimed at international standards, this replacement of terminals is convenient and fast by means of vibrating disc feeding. the complex process can be simplified, and the overall efficiency is 3-4 times as high as the original, which has a greater cost advantage; the trumpet shape is adopted in the line extension part to make threading convenient. It adopts sensitive pneumatic induction control and quick crimping. Imported components, cylinder, stable performance.
Parameter range:
Suitable terminal specification: 6/8/10mm
Length of peeling: 6-10mm
Crimping range: 0.5-2.5mm (AWG13#-AWG21#)
Pressing ability: 15KN
Gas source: 0.5-0.7Mpa
Power supply: AC 220V 50Hz
Weight: 32kg
Appearance size: 400*340*450mm
Product characteristics:
1., simplification of complex processes can be achieved. The overall efficiency is 3-4 times the original cost, and has a larger cost advantage.
2. the terminals do not need to change the vibratory disc, changing the specifications of different terminals at once.
3. wear thread, peeling and pressing to finish at one time.
4. line deep part uses bell shaped shape to facilitate thread penetration.
5. the peeling line is automatically adjusted, and the height of crimping is automatically adjusted.
6., sensitive pneumatic control should be adopted to press the connection quickly.
