Mountain Rockfall Protection Mesh
Product Quick Detail
- Place Of Origin
- Hebei Province
- Price Per M2
- USD5-30 / m2
- Packaging
- In Rolls, or as requested
- Delivery
- 15 Days
Specifications

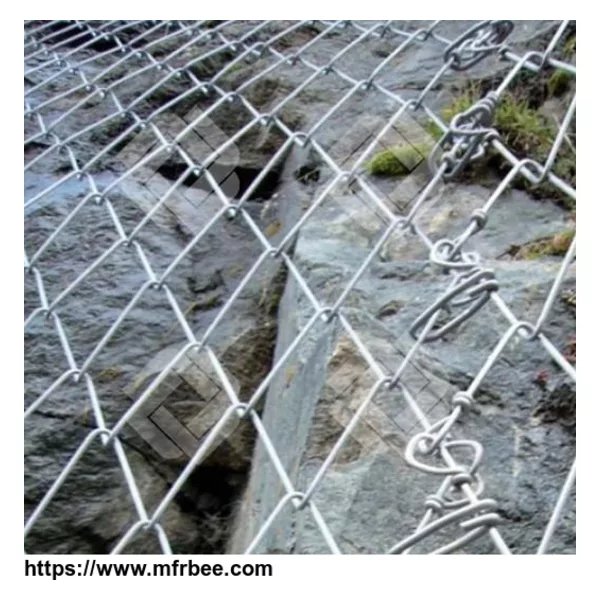

Tecco mesh is made of high tensile steel wire. Tecco mesh system is a kind of active rockfall barrier system, including tecco mesh, wire rope anchor, spike plate, boundary rope, sewing rope and steel clips. With the wire ropes and steel clips, the tecco mesh is fastened onto the mountain or slope surface tightly and firmly to block the large stones and reduce the damage of landslip or debris flow.
Tecco Mesh Specification
Wire diameter: 3 mm, 4 mm or 2.0mm.
* Mesh size: Inscribed circle diameter is 65 mm, 80mm, 45mm, 40mm, 60mm,etc.
* Tensile strength: minimum 1770 MPa. (It's also available with 900Mpa, 1370Mpa etc.)
* Corrosion treatment: zinc-aluminum coated (Zinc coating ≥150g/m2. or heavily zinc coated (Zinc coating ≥200g/m2.)
* Zinc thickness: no less than 150 g/m2.
* Breaking load of single wire: 12.5 kN.
* Roll width: 1 m- 2.9m- 3.5 m- 3.9m.
* Roll length: 10 m- 20m- 30m
Tecco Mesh Feature
High safety and tensile strength.
Rhomboid mesh structure for stability.
Corrosion and rust resistance.
Environmental friendly for plant growth.
Easy to install and transport.
Durable and long service life.
