ESD Simulator | IEC 61000-4-2 Electrostatic Discharge Simulator
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- Shanghai
- Packaging
- Wooden cases
- Delivery
- 15 Days
Specifications
ESD simulator
Specifications:
| Product Model | ESD61000-2 | ESD61000-2A |
| Output Voltage | 0.1~20kV±5% | 0.1~30kV±5% |
| Polarity | Positive/Negative | Positive/Negative |
| Energy Storage Capacitance | 150pF±10% (Replaceable) | 150pF±10% (Replaceable) |
| Discharge Resistor | 330Ω±5% (Replaceable) | 330Ω±5% (Replaceable) |
| Current Rise Time | 0.6~1ns | 0.6~1ns |
| Testing Functions | Single, Count, 20pps, Air, Contact, IEC level | Single, Count, 20pps, Air, Contact, IEC level |
| Trigger Mode | MANUAL/AUTO | MANUAL/AUTO |
| Numbers of Discharge | 1~9999 | 1~9999 |
| Repetition | 0.05s~99.99s | 0.05s~99.99s |
| Working Power | AC220V (Option 110V) ±10%, 50/60Hz | AC220V (Option 110V) ±10%, 50/60Hz |
Calibrate Report:
| Output Voltage (kV) | First Peak Current (A) | Current at 30ns (A) | Current at 60ns (A) | Rise Time (ns) |
| 2 | 7.29 | 4.10 | 2.20 | 0.93 |
| 4 | 15.40 | 7.90 | 4.30 | 0.97 |
| 6 | 23.20 | 12.10 | 6.50 | 0.97 |
| 8 | 29.40 | 16.20 | 9.30 | 0.89 |
| -2 | 7.39 | 3.50 | 2.30 | 0.92 |
| -4 | 15.50 | 7.70 | 4.30 | 0.89 |
| -6 | 23.40 | 11.90 | 6.30 | 0.90 |
| -8 | 31.80 | 16.10 | 8.20 | 0.90 |

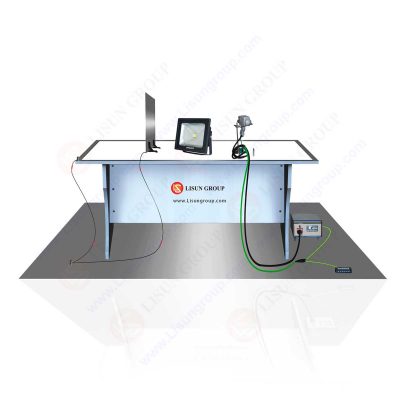

We suggest you choose LISUN ESD Simulator Test Desk to work with ESD61000-2:
ESD Standard DESK[/caption] Waveform:
