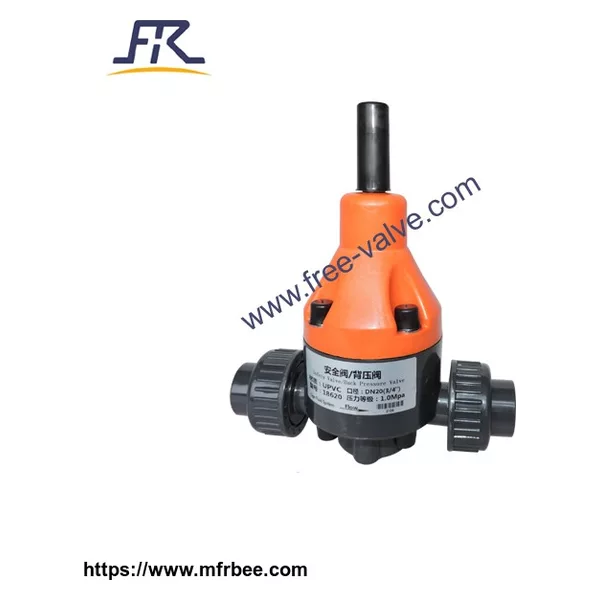

Plastic Back Pressure Valve

FREE-VALVE’splastic back pressure valveis installed in theline of positive pressure discharge of metering pump,its function is to prevent siphon phenomenon occur.Removingthe protective cap on the adjusting screwon site,thenrotating and adjustingscrew , the required pressurewill be got by adjustingpressure gaugein thepipeline. Back pressure will be set within the range of 0-0.6 MPa by adjusting screw .

The combination use of plastic back pressure valves and pulse dampershas the following advantage :

1. Itreduces damage to the system by water hammers, so that the systemwillachieve superior low vibration effect.

2. It willkeeping a certain constant pressure fromthe pump outletportto the back pressure valve,

3. Keep the system flow rate is constant.

4. Keepthe stability of system pressure.

Features

1. Spring diaphragm type structure, the pressure is adjustable.

2. The part that contacts with the mediumonly include thebottom valve body and the diaphragm; thebottom valve body and the diaphragm seal processing has the sealing bar,make surethe goodsealing effect and highersensitivity.

3. The diaphragm adopts EPDM, which has good sealing effect and long service life.

Technical Specification

1. Size Range: DN15~DN65

2. Pressure Range:PN10

3. Connection Type: Flange,thread,weld

4. Body material:RPP.UPVC,CPVC,PVDF,PPH

5. Pressure test:GB/T12243

6. Design standard: GB/T12241,GB/T12243

7. Service temperature:-20°C to 55°C

Application

FREE-VALVE’splastic safety valve/back pressure valve is widely used in chemical industry, water treatment, laboratory, corrosive liquid, ordinary gas and other fields
