Professional Cycloaliphatic Epoxy Insulators APG Clamping Machine
Product Quick Detail
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- 1PC In Wooden Case
- Delivery
- 25 Days
Specifications

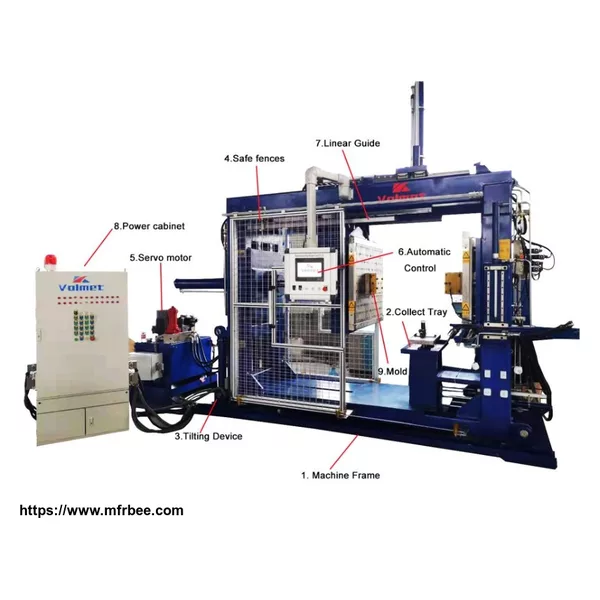

Professional Cycloaliphatic Epoxy Insulators APG Clamping Machine For APG Injection Casting Machine
1. Application:
Used for producing epoxy resin components from 11-36KV, such as CT, PT, insulators, bushings, spout,SF6 cover, GIS, LBS etc.
| Condition | New |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Marketing Type | factory directly sale |
| Warranty of core components | 1 Year |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump |
| Warranty | 1 Year |
| Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support | |
| After Warranty Service | Video technical support, Online support, Spare parts, Field maintenance and repair service |
| Applicable Industries | Manufacturing Plant |
| Product type | Resin transfer molding machine |
| Clamping plate | 800*600mm |
| Mould clamping force | 200KN |
| Mould clamping speed | 3.2m/min |
| Max mould clamping distance | 1300mm |
| Min mould clamping distance | 250mm |
| Power of hydraulic station | 5.6KW |
| Certificate | ISO9001:2008,CE |
| Advantage | High Effciency |
| Warranty | 1-Year |
- Country: China (Mainland)
- Business Type: volmet Electricity Technology Co.,Ltd is the only supplier who professional produce APG machine,apg casting machine,apg clamping machine
- Market:
- Founded Year:2008
- Address:
- Contact:Eda Wu
