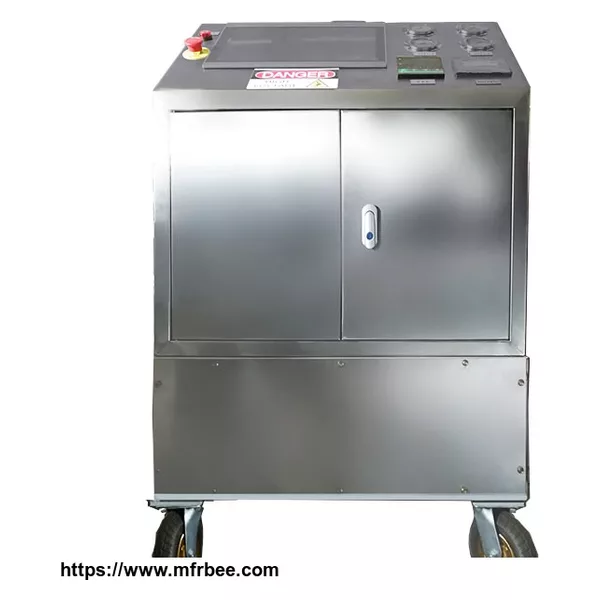

Automatic Slag Discharge High precision Centrifugal Oil Purifier

1. Scope of application

Lubricating oil, hydraulic oil, turbine oil, transformer oil, gear oil, cutting oil, cleaning oil, rolling oil, cooling oil, engine oil, guide rail oil, stamping oil, antirust oil, spark engine oil, phosphate oil, water glycol, etc.

2. Working principle

The oil purification device is a three-phase separation of particulate matter, oil, and water medium, and the sedimentation separation formed according to different densities, and the sedimentation is accelerated under the action of centrifugal force.Through the centrifuge, the sedimentation acceleration evolves into the circumferential acceleration. The separated material is sent into the heart of the machine, that is, inside the barrate. Under the action of strong centrifugal force, the material passes through the separation interval of a group of disc bundles. The disc wall moves out of the neutral hole, where heavy slag accumulates in the sediment area, and the heavy phase flows upward to the centripetal pump; the liquid with a smaller specific gravity moves along the disc wall into the neutral hole and converges to the lower centripetal pump The light and heavy phases are respectively output by the lower centripetal pump and the upper centripetal pump; the heavy slag is discharged regularly; continuous production is implemented.

3. Technical parameters

Model Number:	LC-YJ-HWM-G
Scope of application:	Oil-Based
Filtration Method:	Centrifugal Separation
Slag Discharge Mode:	Automatic Slag Discharge
Start Mode:	Soft Start
Power Supply Data:	Three Phase AC 38V 50Hz
Total Power (Kw):	48
Control Panel:	Siemens Touch Panel
Drum Capacity (L):	20
Drum Speed (r/min):	11600
Centrifugal Effect:	99%
Working Pressure (Mpa):	0.4
Working Noise:	≤75 dB(A)
Maximum Handling Capacity:	12000
Recommended Flow (L/H):	6000~12000
Working Temperature for Oil (℃):	45
Moisture after Processing (ppm):	＜500
Oil Cleanliness (NAS):	Maximum level 5
Filtering Accuracy (μm):	2
HS Code:	8421299090
Equipment Size (mm):	1300*950*1700
Package Size (mm)：	1480*1080*1750
Net Weight (kg):	660
Gross Weight (Kg):	730

4. Benefits to customers

1)According to the working conditions, under the same conditions, it can prolong the service life of lubricating oil at least twice;

2)Reduce the cost of hazardous waste treatment by at least 75%;

3)Reduce the cost of downtime due to oil change and increase productivity;

4)Prolong the service life of lubrication parts and reduce associated maintenance costs;

5)Water removal that directly avoids the side effects of oil emulsification;

6)Improve the factories'environment ,solve the odor problem and reduce the turnover rate;

7)Improve environmental protection of waste liquid discharge.
