Two Axis Wire Rolling Machine
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- China
- Packaging
- N/A
- Delivery
- 15 Days
Specifications

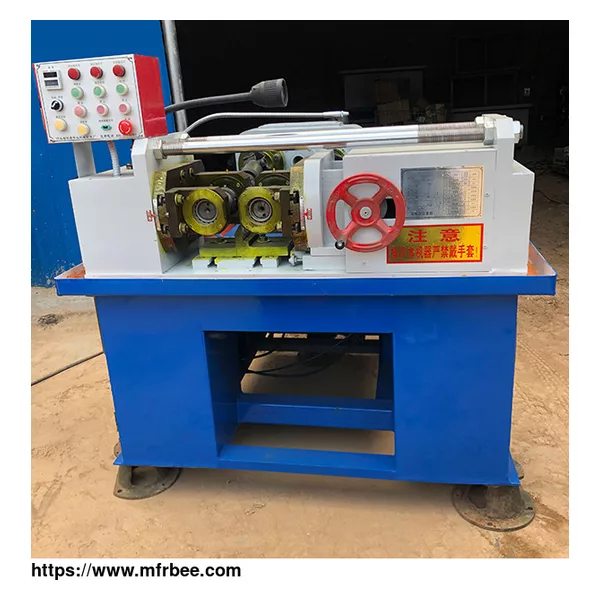

Two Axis Wire Rolling Machine
The wire rolling machine is a multi-functional cold extrusion machine tool. The wire rolling machine can roll the workpiece with thread, straight grain and twill in the cold state within its rolling pressure range
The machine has a safe and reliable electro-hydraulic execution and control system, which can select each working cycle in manual, semi-automatic and automatic modes.
Two axis wire rolling machine is widely used in hardware construction, automobile and motorcycle parts, transportation power and standard parts
Production has strong advantages
Specification:
| project | parameter |
| Product model | 200 type screw making machine |
| Machining diameter | m4-m80 |
| pitch | 0.8-8 |
| Spindle drive power | 15kw |
| Hydraulic transmission power | 7.5kw |
| Electric cooling pump | 90w |
| Overall dimension | 2450*1780*1670mm |
| weight | 3000kg |
| Machining length | unlimited |
| project | parameter |
| Product model | 185 type screw making machine |
| Machining diameter | m4-m60 |
| pitch | 0.8-6 |
| Spindle drive power | 11kw |
| Hydraulic transmission power | 5.5kw |
| Electric cooling pump | 90w |
| Overall dimension | 1650*1550*1545mm |
| weight | 2000kg |
| Machining length | unlimited |
| project | parameter |
| Product model | 150 type screw making machine |
| Machining diameter | m4-m39 |
| pitch | 0.8-4 |
| Spindle drive power | 7.5kw |
| Hydraulic transmission power | 2.2kw |
| Electric cooling pump | 90w |
| Overall dimension | 1520*1500*1445mm |
| weight | 1600kg |
| Machining length | unlimited |
| project | parameter |
| Product model | 40ttype screw making machine |
| Machining diameter | m4-m16 |
| pitch | 0.8-2 |
| Spindle drive power | 4kw |
| Hydraulic transmission power | 2.2kw |
| Electric cooling pump | 90w |
| Overall dimension | 1350*1250*1470mm |
| weight | 800kg |
| Machining length | unlimited |
