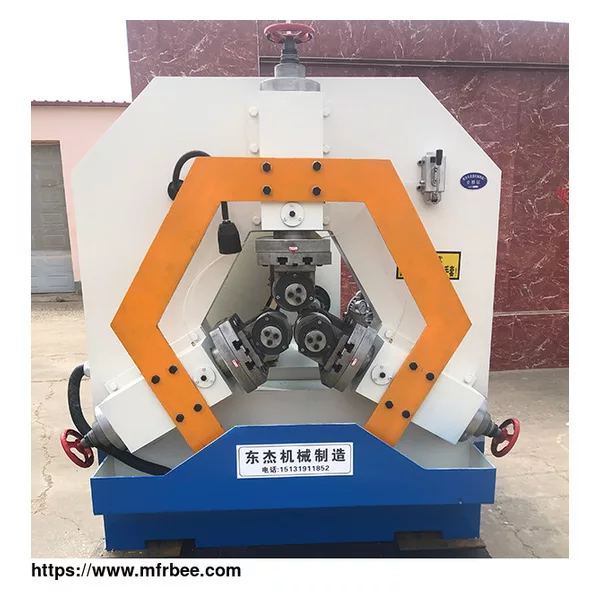

Three-axis Thread Rolling Machine
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- China
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Three-axis Thread Rolling Machine
In the pipe thread processing industry, the three-axis thread rolling machine has equal triangular support to ensure true roundness, concentricity and perpendicularity.
Specification:
It is applicable to the processing of 14-30 thin-walled pipe threads, and can process threads, reticulate and straight lines.
| project | parameter |
| Product model | Type 30 three axis screw rolling machine |
| Machining diameter | 10-28 |
| pitch | 3 |
| Spindle drive power | 4kw |
| Hydraulic transmission power | 2.2kw |
| Electric cooling pump | 90w |
| Overall dimension | 1100*1000*1200mm |
| weight | 300kg |
| Machining length | unlimited |
It is applicable to the processing of 30-70 thin-walled pipe threads, and can process threads, reticulate and straight lines.
| project | parameter |
| Product model | Type 65 three axis screw rolling machine |
| Machining diameter | 30-70 |
| pitch | 0.1-6 |
| Spindle drive power | 11kw |
| Hydraulic transmission power | 4kw-4 |
| Electric cooling pump | 90w |
| Overall dimension | 2000*1600*1750mm |
| weight | 3000kg |
| Machining length | unlimited |
It is applicable to the processing of 30-120 thin-walled pipe threads, and can process threads, reticulate and straight lines.
| project | parameter |
| Product model | Type 125 three axis screw rolling machine |
| Machining diameter | 30-120 |
| pitch | 1-12 |
| Spindle drive power | 15kw |
| Hydraulic transmission power | 5.5kw-4 |
| -4Electric cooling pump | 90w |
| Overall dimension | 2000*1600*1750mm |
| weight | 3500kg |
| Machining length | unlimited |
