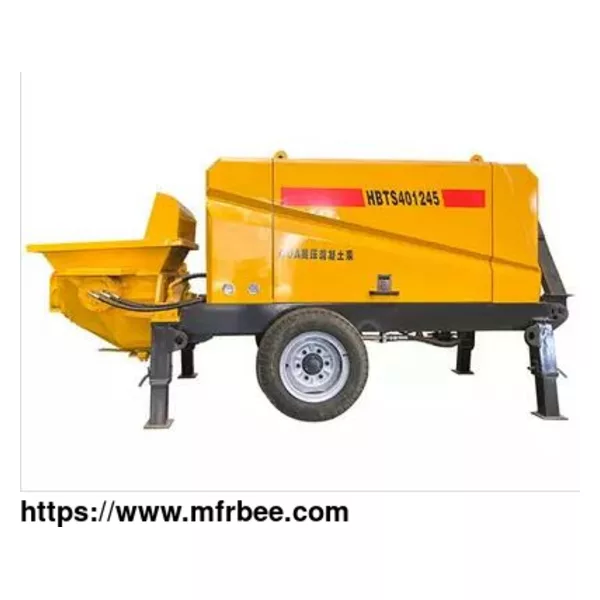

Secondary Structural Column Pump
Concrete delivery pump, also known as concrete pump, is composed of pump body and delivery pipe. It is a kind of machinery that uses pressure to continuously transport concrete along the pipeline.
It is mainly used in housing construction, bridge and tunnel construction.
Specification:
|
project
|
parameter
|
|
Product model
|
Type 15 secondary structural column pump
|
|
Cement conveying capacity
|
5-8 m3/h
|
|
pressure
|
10mpa
|
|
Vertical conveying distance
|
20m
|
|
Total power
|
15kw
|
|
Horizontal conveying distance
|
60m
|
|
Overall dimension
|
2000*750*1100mm
|
|
weight
|
780kg
|
|
Diameter of processed stone
|
20mm
|
|
project
|
parameter
|
|
Product model
|
Type 20 secondary structural column pump
|
|
Cement conveying capacity
|
15 m3/h
|
|
pressure
|
10mpa
|
|
Vertical conveying distance
|
50m
|
|
Total power
|
22kw
|
|
Horizontal conveying distance
|
120m
|
|
Overall dimension
|
3500*1450*1500mm
|
|
weight
|
1600kg
|
|
Diameter of processed stone
|
30mm
|
|
project
|
parameter
|
|
Product model
|
Type 30 secondary structural column pump
|
|
Cement conveying capacity
|
25 m3/h
|
|
pressure
|
11mpa
|
|
Vertical conveying distance
|
100m
|
|
Total power
|
37kw
|
|
Horizontal conveying distance
|
260m
|
|
Overall dimension
|
4000*1700*1700mm
|
|
weight
|
2200kg
|
|
Diameter of processed stone
|
30mm
|
|
project
|
parameter
|
|
Product model
|
Type 40 secondary structural column pump
|
|
Cement conveying capacity
|
30 m3/h
|
|
pressure
|
12mpa
|
|
Vertical conveying distance
|
200m
|
|
Total power
|
55kw
|
|
Horizontal conveying distance
|
450m
|
|
Overall dimension
|
4400*1800*1800mm
|
|
weight
|
2700kg
|
|
Diameter of processed stone
|
30mm
|
|
project
|
parameter
|
|
Product model
|
Type 50 secondary structural column pump
|
|
Cement conveying capacity
|
40 m3/h
|
|
pressure
|
13mpa
|
|
Vertical conveying distance
|
80m
|
|
Total power
|
55kw
|
|
Horizontal conveying distance
|
180m
|
|
Overall dimension
|
4400*1800*1800mm
|
|
weight
|
2700kg
|
|
Diameter of processed stone
|
40mm
|
|
project
|
parameter
|
|
Product model
|
Type 60 secondary structural column pump
|
|
Cement conveying capacity
|
60 m3/h
|
|
pressure
|
13mpa
|
|
Vertical conveying distance
|
80m
|
|
Total power
|
90kw
|
|
Horizontal conveying distance
|
180m
|
|
Overall dimension
|
6200*1900*2100mm
|
|
weight
|
6000kg
|
|
Diameter of processed stone
|
40mm
|
|
project
|
parameter
|
|
Product model
|
Type 80 secondary structural column pump
|
|
Cement conveying capacity
|
80 m3/h
|
|
pressure
|
13mpa
|
|
Vertical conveying distance
|
150m
|
|
Total power
|
110kw
|
|
Horizontal conveying distance
|
500m
|
|
Overall dimension
|
6600*1900*2100mm
|
|
weight
|
6200kg
|
|
Diameter of processed stone
|
40mm
|
