Blocking pipe plugs, designed to offer professional leaking hunting for drainage pipelines, are normally made of quality polymer materials with superb cord reinforcements. Taking advantages of their versatility, flexibility, durability and good gas tightness, blocking pipe plugs are widely used in all kinds of constructions, water and sewer and pipeline application.

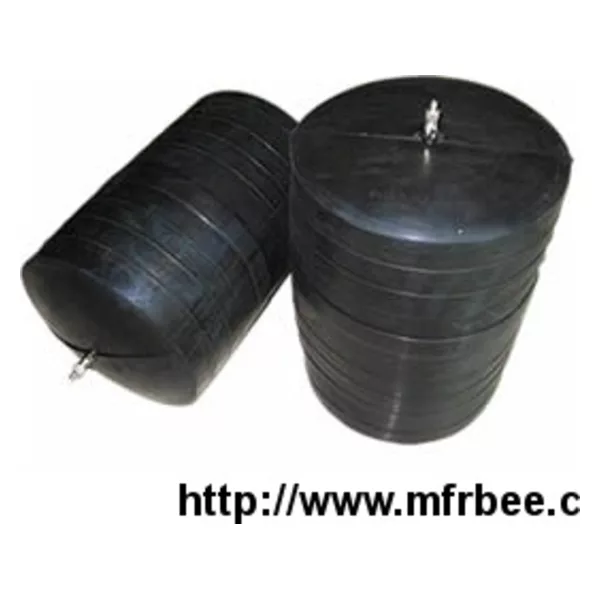

Blocking pipe plugs
Features:
Applications:
Specification:
Small blocking pipe plugs | |||||
---|---|---|---|---|---|
Type | Plug type | ID pipe diameter (Min to max) | Plug diameter | Plug length | Inflation pressure |
SBLP-1 | 1" | 0.75" - 1.3" | 0.8" | 3.9" | 36PSI |
SBLP-2 | 1½" | 1.3" - 1.6" | 1.3" | 3.9" | 36PSI |
SBLP-3 | 2" | 1.8" - 2.0" | 1.8" | 4.0" | 36PSI |
SBLP-4 | 3" | 2.8" - 3.0" | 2.8" | 5.1" | 36PSI |
SBLP-5 | 4" | 3.4" - 4.0" | 3.3" | 6.9" | 36PSI |
SBLP-6 | 6" | 5.6" - 6.0" | 5.6" | 8.7" | 36PSI |
SBLP-7 | 8" | 6.9" - 8.0" | 6.9" | 10.4" | 36PSI |
SBLP-8 | 10" | 8.6" - 10.0" | 8.6" | 11.6" | 36PSI |
SBLP-9 | 12" | 10.8" - 12.0" | 10.8" | 13.2" | 36PSI |
Multi-sized blocking pipe plugs | |||||
---|---|---|---|---|---|
Type | Pipe diameter ID | Plug diameter | Plug length | Plug weight | Inflation pressure |
MBLP-1 | 1.6" - 2.8" | 1.4" | 7.7" | 0.7 lbs | 36 PSI |
MBLP-2 | 2.8" - 6" | 2.7" | 13.2" | 1.3 lbs | 36 PSI |
MBLP-3 | 4" - 8" | 3.6” | 21.1" | 2.4 lbs | 36 PSI |
MBLP-4 | 6" - 12" | 5.6" | 22.6" | 4.2 lbs | 36 PSI |
MBLP-5 | 8" - 16" | 7.6" | 25.0" | 6.6 lbs | 36 PSI |
MBLP-6 | 12" - 21" | 10.7" | 26.6" | 13.2 lbs | 36 PSI |
MBLP-7 | 14" - 24" | 12.7" | 34.1" | 18.5 lbs | 36 PSI |
MBLP-8 | 15" - 30" | 13.5" | 42.7" | 24.0 lbs | 36 PSI |
MBLP-9 | 20" - 40" | 18.6" | 46.7" | 38.1 lbs | 22 PSI |
MBLP-10 | 24" - 48" | 22.6" | 59.1" | 85.8 lbs | 22 PSI |
MBLP-11 | 30" - 60" | 23.6" | 90.6" | 143.0 lbs | 15 PSI |
MBLP-12 | 32" - 72" | 23.6" | 116.5" | 231.0 lbs | 15 PSI |
High pressure blocking pipe plugs | |||||
---|---|---|---|---|---|
Type | Pipe diameter ID | Plug diameter | Plug length | Plug weight | Inflation pressure |
HBLP-1 | 4" - 6" | 3.6" | 21.1" | 2.7 lbs | 86 PSI |
HBLP-2 | 6" - 8" | 5.6" | 22.6" | 4.4 lbs | 86 PSI |
HBLP-3 | 8" - 12" | 7.6" | 25.0" | 7.1 lbs | 86 PSI |
HBLP-4 | 14" - 20" | 12.7" | 34.1" | 19.1 lbs | 86 PSI |
HBLP-5 | 20" - 24" | 18.6" | 46.7" | 39.6 lbs | 86 PSI |
HBLP-6 | 4" - 5" | 3.6" | 21.1" | 3.3 lbs | 173 PSI |
HBLP-7 | 5" - 6" | 5.6" | 22.6" | 5.9 lbs | 173 PSI |
HBLP-8 | 8" - 10" | 7.6" | 25.0" | 9.5 lbs | 173 PSI |
HBLP-9 | 12" - 14" | 10.9" | 26.8" | 17.6 lbs | 173 PSI |
HBLP-10 | 16" | 12.7" | 34.1" | 25.3 lbs | 173 PSI |
HBLP-11 | 20" | 18.6" | 49.7" | 53.0 lbs | 173 PSI |
