Leica Disto S910 and TRI 200 Pro Pack - 6010741

Place Of Origin
Singapore
Minimum Order
1
Packaging
N/A
Delivery
7 Days

Leica Disto S910 and TRI 200 Pro Pack

Model Number: 6010741

Features:

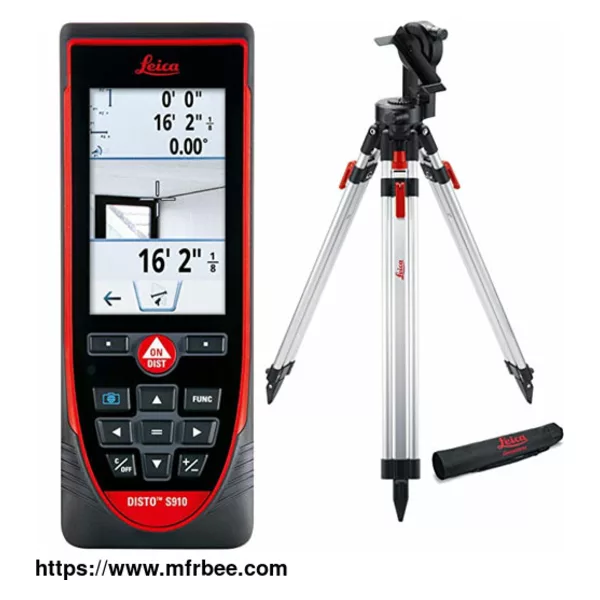

  • The Leica Disto S910 and TRI 200 Pro Pack includes the S910, TRI 200 tripod, a tripod soft bag with shoulder strap, and the FTA 360-S fine tune adapter.
  • The S910 is the first LDM that captures multiple, accurate measurements in three dimensions from a single location, radically improving the efficiency of common measuring tasks.
  • Smart Base -- a biaxial pivot integrated with the circuit board -- is the key hardware innovation. Combined with a more powerful laser, a 360° tilt sensor, and new software --SmartBase enables the S910 to measure the distances and angles between multiple points.
  • SmartBase facilitates three new remote measurement functions:
    • Point to Point (P2P): Measure the tie distance between two points, even if you are hundreds of feet from your target. Shoot Point 1 then Point 2 and the S910 displays the distance between them. Widths, heights, diagonals, gaps, it doesn't matter: Just measure the start and end point and the distance is displayed.
    • Smart Area: Shoot the corners of any polygon to determine the area of walls, floors, even complex roof shapes.
    • Smart Angle: Shoot three points to measure any angle (including outside angles, which is a first).
  • In the vast majority of cases you will want a tripod to use these functions. In addition to the Leica Disto S910 the S910 and TRI200 Pro Pack also includes the TRI 200 tripod, a tripod soft bag with shoulder strap, and the FTA 360-S fine tune adapter.v
  • Even with a tripod and outdoor point finder camera, placing your laser point exactly where you want it can be challenging, especially at longer distances. The FTA 360-S is a micro-adjustable tripod adapter. Point and shoot to get close, then tweak the knobs ever so slightly to adjust your spot by millimeters.
  • Capture and Export Measurement Data
  • The S910 connects to compatible mobile apps with Bluetooth and exports DXF files over WiFi.

Specifications:

    ISO 16331-1 certified measuring accuracy (favorable conditions) 1.0mm / ± 0.04 in*
    ISO 16331-1 certified measuring accuracy (unfavorable conditions) 2.0mm / ± 0.08 in**
    ISO 16331-1 certified range (favorable conditions) 0.05m - 300m / 0.16 ft - 984 ft
    ISO 16331-1 certified range (unfavorable conditions) 0.05m - 150m / 0.16 ft - 492 ft
    Smart Base vertical range -40° to 80°
    Smart Base vertical sensor tolerance up to +/- 0.1°
    Smart Base horizontal range 360°
    Smart Base horizontal tolerance up to +/- 0.1°
    Tolerance P2P function
at distances (combination of sensors and distance measuring) approx. :
+/- 2 mm / 2 m+/- 5 mm / 5 m +/- 10 mm /10 m
    Measuring units 0.000 m, 0.0000 m, 0.00 m, 0.00 ft, 0'00" 1/32, 0.00 in, 0 in 1/32
    X-Range Technology Yes
    Pointfinder with 4x zoom Yes
    Overview camera Yes
    File format .jpg / .dxf
    Memory Last 50 displays
    Windows Software DISTO Transfer with AutoCAD® plugin
    Free App iOS / Android
    Data interface Bluetooth® V4.0 Smart / WLAN / USB
    Measurements per set of batteries ~ 4000
    Storage Temp. Range -25 to 60 °C -13 to 140 °F
    Operating Temp. Range -10 to 50 °C 14 to 122 °F
    Charging Temp. Range -10 to 40 °C 14 to 104 °F
    Batteries Li-ion rechargeable
    Tripod thread -20
    Protection class IP 54 - splash water/ dust proof
    Dimensions 61 x 32 x 164 mm / 2.4 x 1.3 x 6.5 in
    Weight with batteries 8.5 oz

Warranty:

  • Three year manufacturer's warranty
