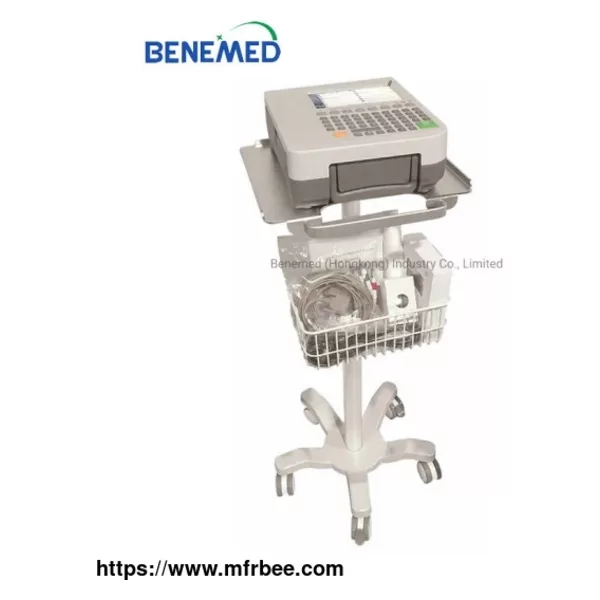

High Quality Digital Hospital Electrocardiogram 12 Channel ECG Machine

Hotsale Cheap Digital Hospital Electrocardiogram 12 Channel ECG Machine BM-ECG12A

Features:

1. It has the function of automatic measure of conventional ECG Parameters (more than 200 cases),which can reduce theburdenof doctors. Automatic mode and manual mode areavailable.
2. Baseline stability test,ensure that each time can be printed out neat and beautiful ECG waveform.
3. The digital isolation technology is used to suppress the drift of ECG signal, AC filter,EMG filter and heart rate detection by the processor to ensure the authenticity and reliability of the output signal.
4. Manual/auto 1, 1+1, 3,6, 12CH display.
5. Manual/auto working modes.

TechnicalSpecification:
Samplingrate:1000Hz.
FrequencyResponse:0.05~150Hz(-3dB)
TimeConstant:≥3.2s
CMRR:>100dB
PatientLeakageCurrent:<10μA.
InputMode:floatinginput.
InputCircuit:<50uA.
NoiseLevel:≤15μVp-p.
Sensitivityvalve:20μV.
PolarizationVoltage:±500mV.
CalibrationVoltage:1mV±2%.
ContinuousOperating:AC≥10h&DC≥3h.
A/DConverter:14bit.
InputImpedance:≥50MΩ.
Sensitivity:1.25,2.5,5,10,20, 40mm/mV±2%(6levels/automaticadjustment)
PaperSpeed:6.25,12.5,25,50mm/s±3%(4levelsadjustment)
RecordingMode:Thermalarrayprinter.
8dot/mm(Vertical)
40dot/mm(Horizontal,25mm/s)
PaperSize:215mmx20m,rollpaper
Filter:
AC:50/60Hz(-20dB);EMG:25/35Hz(-3dB);
Drift:0.15Hz-0.5Hz
HighFrequency:70Hz/100Hz/150Hz.

PhysicalSpecification:
ElectricalPower
AC:220V+10%,50Hz/60Hz
DC:Built-inrechargeablebattery
DataStorage:20sets.
EnvironmentalConditions
TransportationTemperature:-20ºC+50ºC
RelativeHumidity:10%~95%.
AtmosphericPressure:700hPa~1060hPa.
StorageTemperature:-20ºC+50ºC.
RelativeHumidity:10%~95%.
AtmosphericPressure:700hPa~1060hPa.
OperationTemperature:5ºC+40ºC.
RelativeHumidity:25%~80%.
AtmosphericPressure:700hPa~1060hPa.

7"Color LCDBigScreen
LED display brightness level 1-8 can be adjusted freely, suitable for use in a varietyoflightconditions
Simultaneously12-LeadsAcquisitionwithinterpretation
3/6/12leadscanbesetfreelyforsynchronousdisplay,andthewaveformsizecanbeadjustedtofacilitateobservationbymedicalstaff.
Keyboardkeys

1. Highqualitysiliconekeyboard,longlifeandgoodfeel

Supportfullkeyboardpatientinformation,hospitalnamefastinput.
