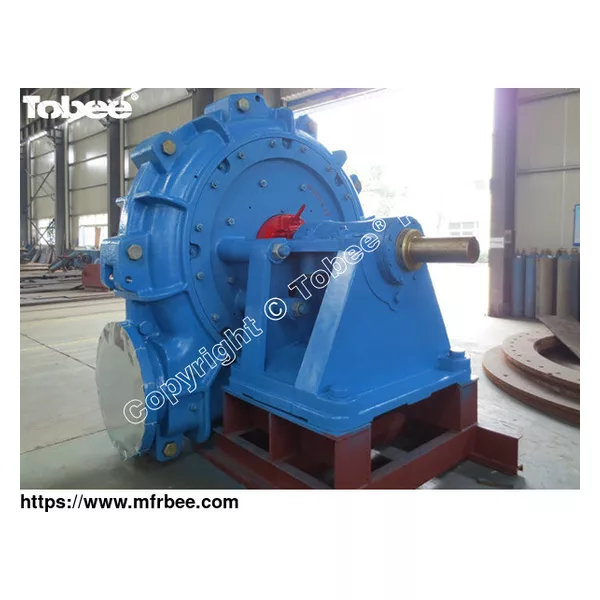

Tobee® 20/18TU-AHR Rubber Slurry Pump
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Tobee® 20/18TU-AHR Rubber Lined Slurry Pump features a split-casing design with molded, replaceable rubber liners. The molded liner may be specified in a variety of natural and synthetic rubbers. Natural gum rubber is standard. The liners offer a shore-A hardness of 30-40 with a tensile strength minimum of 2,700 psi (18n/mm2), 20/18 slurry pumps are widely used in the mining, coal washing, power plant, metallurgy, petrochemical, building material, dredging, and other industrial departments etc.
Design Features:
√ Heavy duty construction with through-bolt design provides ease of maintenance and minimal downtime
√ Ductile iron fully lined casing provides durability, strength, safety, and long service life
√ Large diameter, slow turning, high efficiency impellers designed to achieve maximum wear life and low operating costs
√ Large, open internal passages designed to reduce internal velocities, maximize wear life and lower operating costs
√ Thick rubber or alloy bolt-in liners provide superior corrosion resistance plus offer ease of liner change-out and interchangeability to reduce overall maintenance costs and maximize wear life
√ Minimal shaft/impeller overhang reduces shaft deflection and increases packing life
√ Cartridge-style bearing assembly allows for maintenance in a clean environment without removal of the rubber slurry pump, resulting in reliable operation and prolonged bearing life
√ Grease or oil lubrication bearing assembly options offer ease of maintenance and reduced downtime
√ Optional dry running shaft seal reduces or eliminates flush water requirements
√ Effective expeller prolongs packing life while reducing or eliminating flush water requirement
