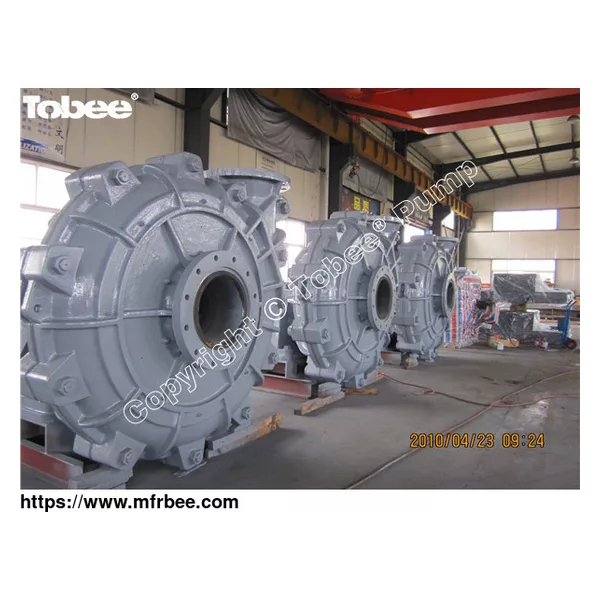

Tobee® 18/16TU-AHR Rubber Slurry Pump

Tobee® 18/16TU-AHR Rubber Lined Slurry Pump is standard heavy duty slurry pumps which designed for the continuous pumping of highly abrasive,high density slurries with minimal maintenance requirements,18/16 slurry pump maintains high efficiencies over the wear life of its components.This type of pump typically used in process plant transfers, wet waste processes, recycling-washing plants,sand plant duties, heavy minerals processing, mineral recovery and chemical process plant.

Design Features:

√ Bearing assembly – a large diameter shaft with short overhang minimizes deflection and contributes to long bearing life. Only four through bolts are required to hold the cartridge type housing in the frame.

√ Liners - easily replaceable liners are bolted, not glued, to the casing for positive attachment and east of maintenance. Hard metal liners are completely interchangeable with pressure moulded rubber.

√ Elastomer seal rings back all liner joints.

√ Casing – Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure capabilities and an extra measure of safety.

√ Impeller – front and rear shrouds have pump out vanes that reduce recirculation and seal contamination. Hard metal and moulded rubber impellers are completely interchangeable.

√ Cast in impeller threads require no inserts or nuts. High efficiency and high head designs are also available.

√ Throatbush – wear is reduced and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.

√ One-piece frame – a very robust one-piece frame cradles the cartridge type bearing and shaft assembly.

√ An external impeller adjustment mechanism is provided below the bearing housing for easy adjustment of impeller clearance.
