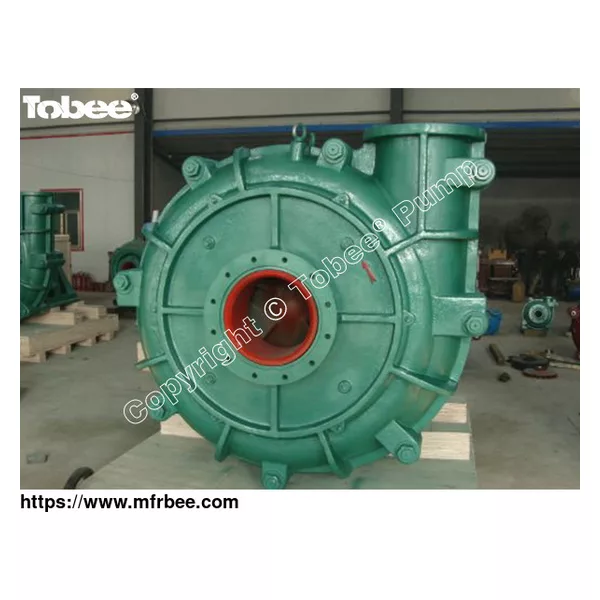

Tobee® 18x16TU-AH Slurry Pump
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Tobee® 18x16TU-AH Slurry Pump is perfect for difficult mill duties with long wear life, It is most complete range of centrifugal slurry pumps for use in mining, industrial, and chemical applications. The 18x16 horizontal slurry pumps were created for ultra heavy duty applications like mill discharge, pipelines, process plant and tailings, and other specialty applications.
Design Features:
√ Available with only one impeller, the heavy duty slurry pump is a horizontal cantilever unit that allows slurry to enter the pumping chamber from only one suction side.
√ Another key feature of this horizontal pump is the double-casing design. Parts in contact with the slurry are replaceable and made of high-chrome for maximum resistance to wear and abrasion. Rubber and polyurethane are selected to make liners and impellers, ensuring excellent serviceability, longevity and durability under all conditions.
√ This series of heavy duty slurry pump offers a variety of impeller options to meet a broad range of operating conditions and customer specific requirements.
√ The rotating shaft is sealed by way of packing seal. The expeller dynamic seal and other mechanical seal arrangements are among options, too.
√ A number of pumps can be connected in series for use.
√ The discharge outlet has 8 positions at 45 degree intervals that can be selected to meet the installation and application requirements
