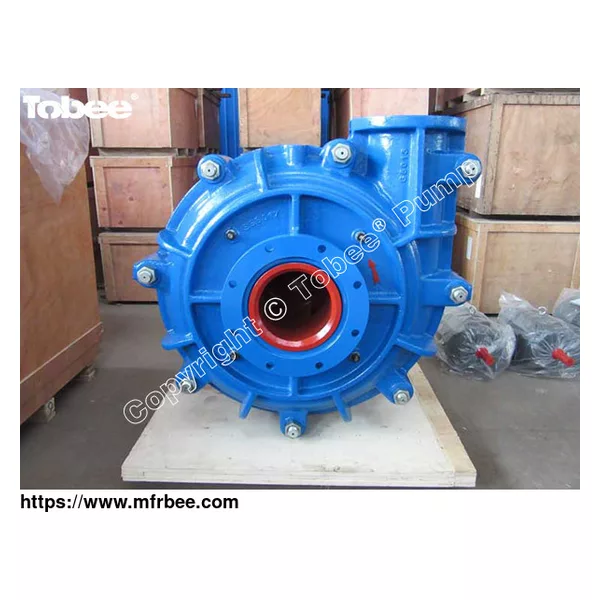

Tobee® 10x8ST-AH Centrifugal Slurry Pumps are the most comprehensive range of centrifugal slurry pumps for use in mining, chemical, mineral processing and general industry applications. The horizontal slurry pumps are designed for heavy duty applications such as mill discharge, power sector and tailings as well as specialty applications, which are used for continuous pumping of high abrasive, high density slurry.
Design Features:
Wetted Parts:
Impellers - wide variety of metallurgic and elastomeric options (metal and elastomer interchangeable) – pump out vanes on rear and front (on closed impellers) reduce recirculation within pump, and aid in preventing seal contamination - optional castings of straight or semi-Francis vanes (from 3 to 8 vanes on certain sizes) offer wider hydraulic options in single sizes
Liners - wide variety of metallic and elastomeric options (metal and elastomer liners are interchangeable) to select from in order to provide the longest wear life possible
Seal Arrangements:
Expeller (Centrifugal Seal) – no external sealing water required where applicable
Stuffing Box - flushed gland sealing with braided packing and a lantern ring
Mechanical Seals
HEBEI TOBEE PUMP CO.,LIMITED
Email: Operation1@tobeepump.com | Skype: Tobee.Pump | Mob: +86-15633815619
www.tobeepump.com www.slurrypumpsupply.com www.tobee.cc www.hydroman.cn www.tobee.store
We are a companyover 20 years of experience specializing in the production of slurry pumps,focuses on research and development, and its business includes production, sales, after-sales maintenance and remote technical support. We have passed ISO9001 and our products are ...
1. The maximum lift of the rubber-lined impeller should not exceed 63m. The maximum allowable linear speed should not exceed 30m/m. 2. Bearings generally use rolling bearings and are lubricated with thin oil or grease. Their operating temperature should not exceed 75°C. 3. The ...
The AH slurry pump is a double-casing slurry pump. It has a high-chromium alloy lining and a rubber-lined lining. Today we will briefly talk about the characteristics of the rubber-lined slurry pump. 1. The head of the rubber-lined slurry pump does not exceed 63m; 2. Slurry ...
