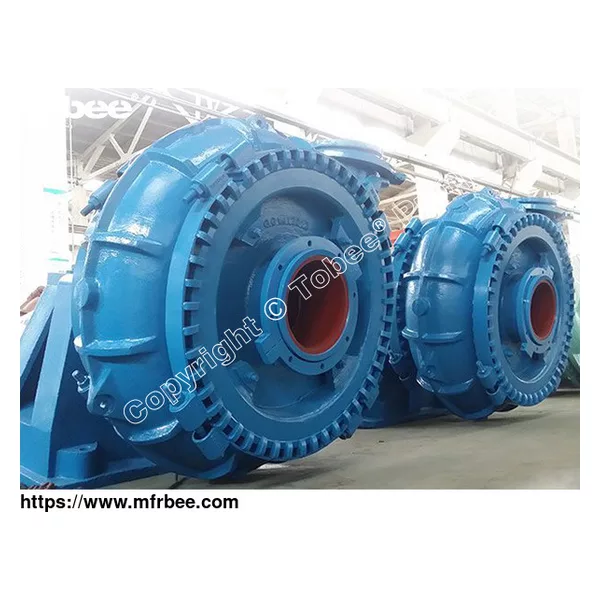

Tobee® 18x16TU-G Gravel Pump is designed for continuous handling of the most difficult higher abrasive slurries, containing solids too large to be pumped by a standard slurry pump, The 18x16 gravel pump is widely used for Sand Excavation, Coal Washery, Power Plant, Mineral Processing Plants, Other industries.
Design Features:
• The unique segmented clamp ring on larger size units and solid on smaller pumps, facilitates casing rotation
to any angle, reducing the need for costly high wearing bends. Minimal maintenance is required.
• Impeller expulsion vanes reduce gland pressure and intrusion of high
concentrations of solids in the gland area. Efficiency is maintained by minimising suction side recirculation.
• Specially designed and shaped impeller vanes allow the
handling of extraordinarily large particles. The unique casing design and sealing vanes prevent abrasive solids intrusion at the sealing faces.
• The large, robust
casing has been designed to reduce internal velocities resulting in minimum efficiency loss and improved casing wear life. The casing is made up of three components to reduce maintenance time and
costs associated with a one piece design.
• Tobee heavy-duty grease lubricated taper roller bearing assemblies are fitted as standard. A rigid large
diameter shaft with reduced overhang minimises deflection and vibration under all conditions ensuring trouble free operation. Unusually high service factors enable the assembly to carry all radial
and axial thrusts.
• A unique “-10” (dash 10) end cover assembly comprising of V-seals, double piston rings and an external flinger with grease lubricated labyrinths
are standard with all Tobee pump.
