Galvanized Wire Mesh Racks

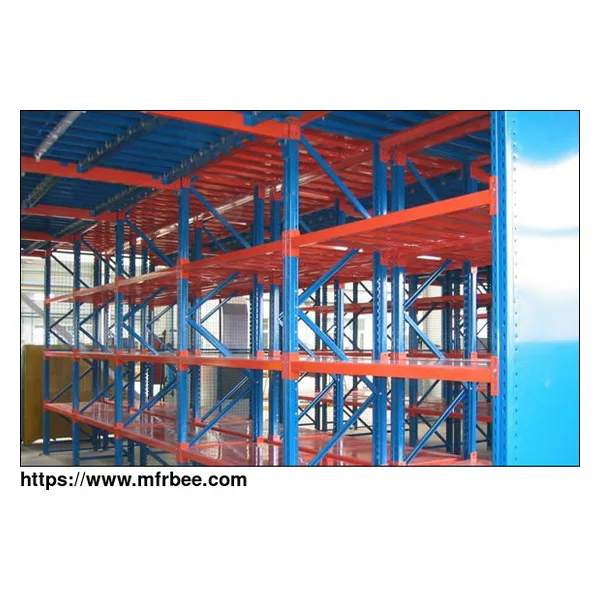

WAREHOUSE PALLET RACKING

Rack shelving system operated by forklift operation.
Designed with upright frames and beams, along with a wide range of accessories, like upright protector, aisle protector, pallet support, pallet stoper, wire decking, steel shelf, etc. Structural line includes selective, two-deep reach, drive-in, cantilever and push back rack.
Common sizes:
Freely adjust height of beam by 75mm or 3"
Max. racking height: 12 meter.
Max. load capacity of the frame:18 tons.
Pallet Racking Upright has optimum with 75mm hole pitch for better loading capacity and space utilization.
Tunnel-hole type: 90/110*70*2.0mm; Pitch: 75mm

DISPLAY RACKS

5 Layer Wire Deck Display Rack
Size: 900*400*370mm
Wire mesh:3mm x5mm
Base: Iron pipe
Finish: Powder coated, chrome or zinc plated

SUPERMARKET DECKING RACKS

Common sizes:
Fabricated from hot dipped galvanized steel wire welded mesh. Galvanized metal racks for supermarket are made for displaying different types of merchandise.
Open 2x4 inch mesh
6-gauge wire with 14-gauge channels
Decking work on 36", 42", or 48" deep pallet rack with 1-1/2" to 1-5/8" step beams with a minimum -3/4" wide ledge.

GALVANIZED MESH RACK WITH WATERFALL

Common size:
Wire decking satisfies 50% open fire codes.
2 x 4 x 4 gauge wire.
Flat wire deck shelf surface, with waterfall front and rear.
Notched corners accommodate angle posts. Galvanized rust-resistant finish.

GALVANIZED STEEL WIRE MESH RACK DECKING

Wire Decking Size 24.5*48.125 2*4 4 GA 3 Box Channels
Finishes are galvanized not painted, or poly painted
Custom dimensions
Designed with optional 3 or 4 flared support channels
Wire mesh structure with loading capacity varieties
Galvanized finish / powder coated finish
Easy to install: drops into place, no fastening needed
Maintenance free

Decking Shelf Structures: Four types
Inside waterfall decking;
Inverted channel decking;
Rivet shelving decking;
Box channel shelving decking.

Common export specifications:
48 x 24"
48 x 36"
36 x 72"
72 x 48"
36 x 48"
48 x 48"

Other external sizes: 24" deep * 46" wide, 36" * 46", 36" *52" ,42" * 46" , 42" * 52" , 44" * 46", 48" * 46".
Wire diameter 4.0mm to 6.4mm
Mesh spacing: 50*50mm, 50*100mm to 100*100mm
The loading capacity: from 50kg-1500kg
