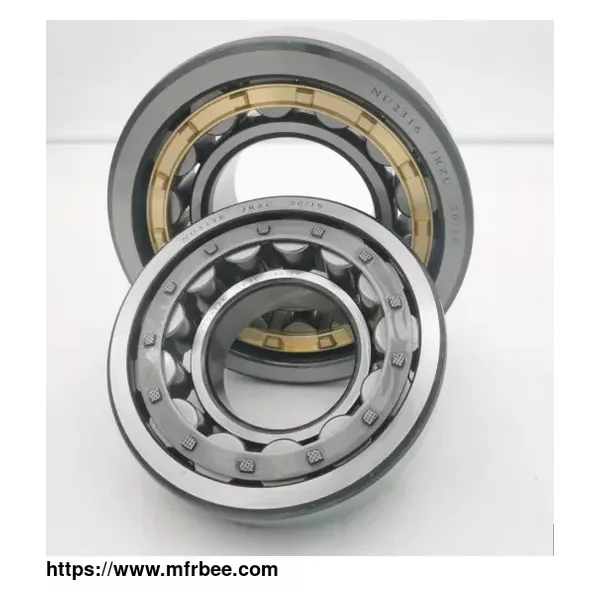

nu 1060 Cylindrical Roller Bearings

Nu 1060 Cylindrical Roller Bearings

Cylindrical roller bearing nu 1060 is one of Single row cylindrical roller bearings types.

Single-row cylindrical roller bearings are usually only subjected to radial force. Compared with ball bearings of the same size, the radial load capacity is increased by 1.5-3 times, with good rigidity and impact resistance. It is especially suitable for rigidly supported, supporting short shafts, Shafts that cause axial displacement due to thermal elongation and machine accessories that require separate bearings for installation and disassembly. Mainly used for large motors, machine tool spindles, engine front and rear support shafts, train and passenger car box shaft supports, diesel engine crankshafts, automobile and tractor gearboxes, etc.

N-type bearings have no ribs on the outer ring, and ribs on both sides of the inner ring. It can allow the displacement of the shaft relative to the bearing seat in both axial directions.

The rolling element is a radial rolling bearing of cylindrical rollers.The internal structure of the cylindrical roller bearing adopts the parallel arrangement of the rollers, and the spacers or spacers are installed between the rollers, which can prevent the inclination of the rollers or the friction between the rollers, and effectively prevent the increase of the rotation torque.
