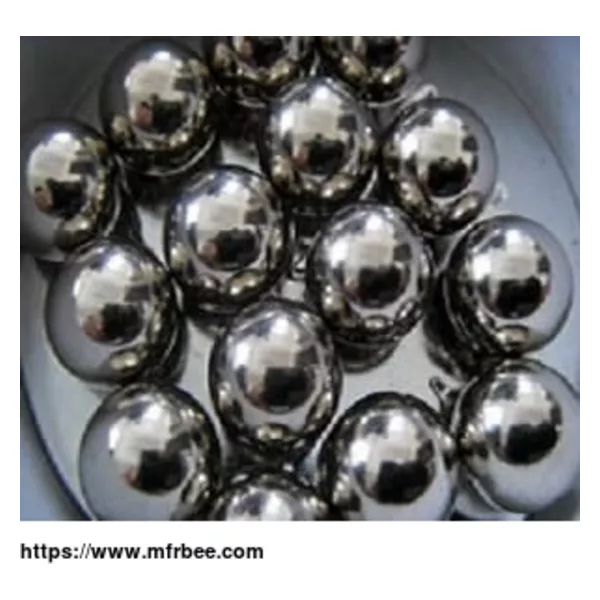

Chrome Steel Balls

Packaging
N/A
Delivery
N/A
https://www.feige-steelball.com/Stainless-Steel-Ball/Chrome-Steel-Balls.shtml
Chrome Steel 52100 is a universal material for many applications. Chrome steel balls contain chromium and due to through hardening has an excellent surface quality and high load bearing. Throughout the manufacturing process, statistical process control assures tolerance accuracy, fine surface finish and a consistent high quality.

MATERIAL ANALYSIS

Carbon 0.98 to 1.10%
Chromium 1.30 to 1.60%
Manganese 0.25 to 0.45%
Silicon 0.15 to 0.35%
Sulfur 0.025% maximum
Phosphorous 0.025% maximum

MECHANICAL PROPERTIES

Tensile strength 325,000 psi
Yield strength 295,000 psi
Elongation in Two Inches 5%
Reduction in Area 8%
Modulus of Elasticity 29,500,000 psi
Density 0.283 lbs/cubic inch
