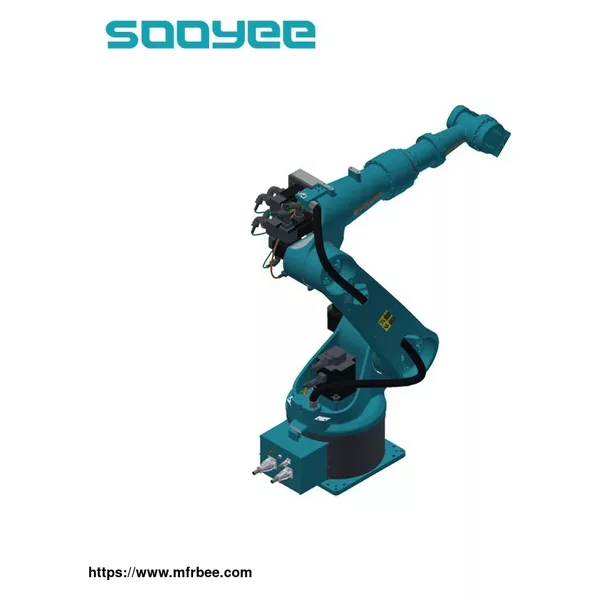

Cost-effective, high performance, competitive 6 axis handling robot for assembly, pickup in metal processing, packaging and printing, food packaging, automotive manufacturing...
Advantage of Handling Robot:
*Proprietary robot body technology and excellent product iteration capability.
*Rear-mounted motor of robot body.
*Light weight and small inertia of robot end, large armspread and load redundancy.
*Excellent waterproof and dust-proof performance and high temperature resistance.
*High quality: strong R&D; original design robot structure and Manufacture.
*Good Price: most competitive price, because we are a manufacturer.
*Reliable Service: prompt response; Online support; Video technical support.
*Low cost maintain: 3 years warranty.
1. Specification of Handling Robot
model Items | SYB2560A | |
Basic parameters | DOF | 6 |
Payload | 60 Kg | |
J3 Axis Additional Load | 30 Kg | |
Repeated Positioning accuracy | ±0.15mm | |
Robot Weight | About550 Kg | |
Installation Way | Floor/sidewall | |
Power Capacity | 9.0 KW | |
Supply Voltage | Three-phase380V | |
Brake | All axis with brake | |
action Range | 2500mm | |
Min arrival distance of point P | 710 mm | |
J1 axis(rotation) | ±170° | |
J2 axis( | -75°~+180° | |
J3 axis(Upper arm swing) | -85°~+145° | |
J4 axis(Arm Gyrate) | ±360° | |
J5 axis(Wrist pitching) | ±125° | |
J6 axis(Wrist rotation) | ±360° | |
Max speed | J1 axis(rotation) | 83°/s |
J2 axis(Lower arm swing) | 83°/s | |
J3 axis(Upper arm swing) | 104°/s | |
J4 axis(Arm Gyrate) | 212°/s | |
J5 axis(Wrist pitching) | 223°/s | |
J6 axis(Wrist rotation) | 333°/s | |
EndResultant Speed | 1.0 m/s | |
Max Allowable torque | J4 axis | 366.0 N• m |
J5 axis | 307.0 N• m | |
J6 axis | 167.0 N• m | |
End flange | Solid | |
Can it be changed to 5-axis | Yes | |
Can you customize the upside-down installation | Yes | |
The main purpose | carry、palletizing、CNC machine loading and unloading | |
Isolation transformer | No |
2. Handling Robot Action range and Machine Dimensions
