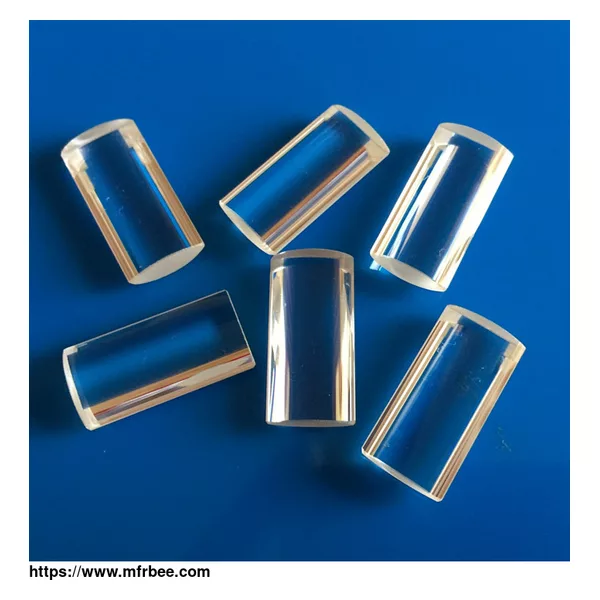

Optical Glass Cylindrical Lens BK7 H-K9L AR Coating

FOB Price
USD $4.00 / Piece
Place Of Origin
China
Minimum Order
10
Packaging
21
Delivery
15 Days
Cylindrical lens is mainly used to change the size of the imaging design requirements.For example, converting a spot to a line spot or changing the height of the image without changing the width of the image.Cylindrical lens be used in linear detector lighting, bar code scanning, holographic lighting, light information processing, computer, laser emission.The optical cylinder lens is widely used in the strong laser system and the synchrotron radiation beam line. At the same time, the requirements for cylinder lens parts are becoming higher, especially in the high-power laser resonator cavity piece and the long line interferometer,other high-precision test instruments and devices.

Specifications:


Structure:Cylindrical Lens

Material: Optical Glass,BK7,H-K9L,UVFS,Germanium,Silicon,CaF2,MgF2,ZnSe,ZnS,Sapphire.

Dia.0.35-700mm

Dia.Tol.+0.00/-0.01mm

Surface Quality:10-5

Surface Irregulatiry:λ/10 @632.8nm or customer design

Thickness tolerance:+0/-0.02mm

Clear Aperture>90% of diameter

Chamfer:0.05-0.5mm

Centeration<30 arcsec

Coating:Single Mag2, Multiple Layers AR Coating

A: 350-650nm
B: 650-1050nm
C: 1050-1585nm
D: Customer Design
