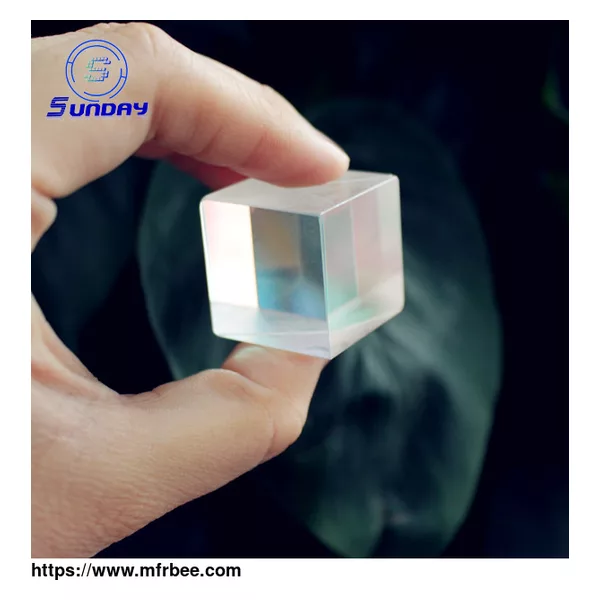

Hight Power Polarization Beamsplitter Cube Prism

FOB Price
USD $10.00 / Piece
Place Of Origin
China
Minimum Order
1
Packaging
40PCS
Delivery
15 Days
A polarizing prism can divide incident unpolarized light into two perpendicular lines. Where, P polarized light passes through completely, while S polarized light is reflected at an Angle of 45 degrees, and the exit direction is 90 degrees with P light. The polarization splitting prism is composed of a pair of high precision right Angle prisms and one of the prisms has a polarizing dielectric film coated on the hypotenuse.

Specifications:

Material:H-K9L H-ZF3 glass, Fused Silica

Demenision:1mm,5mm,10mm 12.7mm 20mm 25.4mm 50.8mm or customized

Demenision tol.:+0.00/-0.05

Surface Quality:10-5

CA:>90%

Surface Flatness:1/10 lambda @632.8nm

Beam Deviation<1mins

Extinction Ratio:300:1 1000:1 10000:1

Transmission:Tp>97% Tp>96%; Ts<1%

Reflection:Rs>99%;Rp<5%

Wavelength:488, 532, 632.8, 650, 808, 850, 980, 1064, 1310, 1550 nm
450-650, 650-900, 900-1200, 1200-1550, 1500-1610 nm

Laser damaged threshold:15J/cm^2@1064nm, 20ns, 20HZ.
