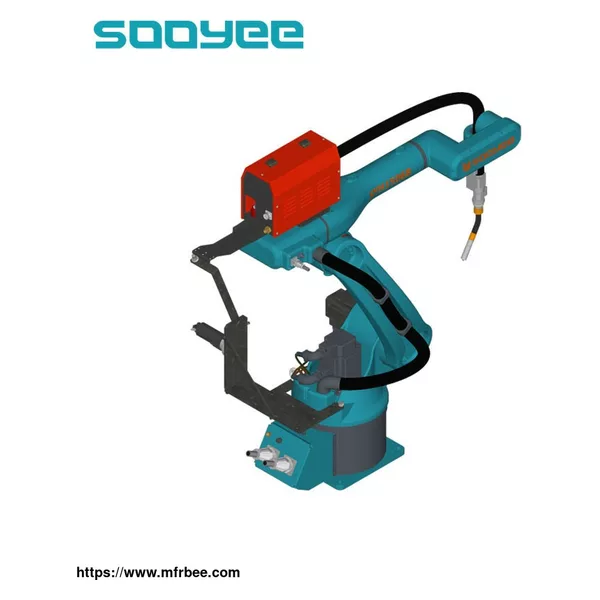

Welding Robot SYH1506B 1550mm 6KG
- Packaging
- N/A
- Delivery
- N/A
Specifications
Cost-effective, highly competitive 6 axis welding robot, matching with different type of welding machine. suitable for stainless steel welding, carbon steel welding and aluminum welding, low spatter welding, sheet metal processing and etc.
Find out our special welding offer with welding gun,wire feeder and welding machine.
Advantage of Welding Robot:
*Proprietary robot body technology and excellent product iteration capability.
*Rear-mounted motor of robot body.
*Light weight and small inertia of robot end, large armspread and load redundancy.
*Excellent waterproof and dust-proof performance and high temperature resistance.
*High quality: strong R&D; original design robot structure and Manufacture.
*Good Price: most competitive price, because we are a manufacturer.
*Reliable Service: prompt response; Online support; Video technical support.
*Low cost maintain: 3 years warranty.
1. Specification Of Welding Robot
| Model Items | SYH1506B | |
| Basic parameters | DOF | 6 |
| Payload | 6 Kg | |
| J3 Axis Additional Load | 12 Kg | |
| Repeated Positioning accuracy | ±0.05mm | |
| Robot Weight | About164Kg | |
| Installation Way | Floor/sidewall | |
| Power Capacity | 2.5 KW | |
| Supply Voltage | Three-phase380V | |
| Brake | J2、3、4、5 axis with brake | |
| action Range | 1551 mm | |
| Min arrival distance of point P | 455 mm | |
| J1 axis（rotation） | ±170° | |
| J2 axis（ | -70°～+170° | |
| J3 axis（Upper arm swing） | -85°～+90° | |
| J4 axis（Arm Gyrate） | ±360° | |
| J5 axis（Wrist pitching） | ±360° | |
| J6 axis（Wrist rotation） | ±360° | |
| Max speed | J1 axis（rotation） | 138°/s |
| J2 axis（Lower arm swing） | 138°/s | |
| J3 axis（Upper arm swing） | 223°/s | |
| J4 axis（Arm Gyrate） | 270°/s | |
| J5 axis（Wrist pitching） | 337°/s | |
| J6 axis（Wrist rotation） | 1070°/s | |
| EndResultant Speed | 1.5 m/s | |
| Max Allowable torque | J4 axis | 15.0 N• m |
| J5 axis | 15.0 N• m | |
| J6 axis | 4.3 N• m | |
| End Flange | ||
| Welding gun install way | internal | |
| recommend welding gun cable length | 1.2m | |
| Can it be Changed to 5-axis | Yes | |
| Can it be Customized Inverted Installation | Yes |
2.WeldingRobot Action range and Machine Dimensions
