The Truss Sludge Scraper

Minimum Order
1
Packaging
N/A
Delivery
15 Days

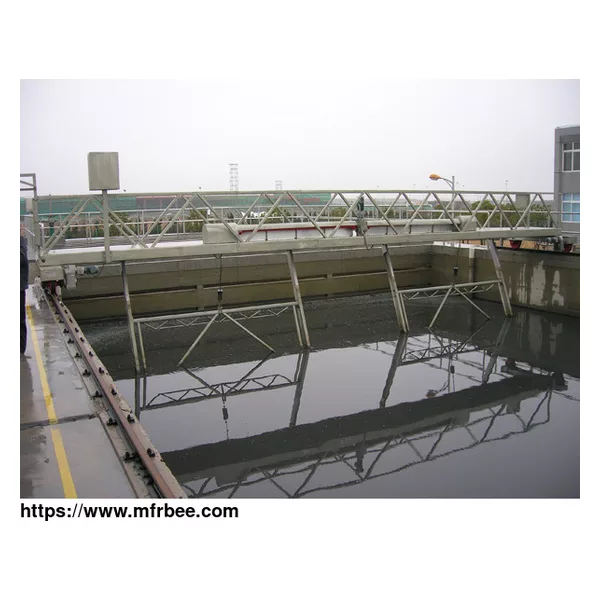

The truss scraper uses reciprocating action, it scrapes the bottom sludge to the sludge collection pit and discharges it. It is used for sludge scraping at the bottom of advection sedimentation tank. Water enters at one end and exits at the other end.

There is a slope at the bottom of the pool (about 8/1000). The track gauge is generally around 4-25m. When the pool width is large, it can be made into a multi-pool combined structure, and the track gauge is generally 4-8m for single drive.


Product advantages

1) The hinged scraper arm of the truss scraper can automatically scrape and collect in different layers without jamming

2) Quick returning function can have when using variable speed transmission

3) It can have the PLC automatic operation

4) With rake lifting function, it can have load reduction or single scraping

5) When the span is large, it generally use the synchronous motor, and the phenomenon of rail climbing will not occur

6)The sludge scraping board is equipped with rubber plates and rollers,so the sludge scraping is completed and reliable
