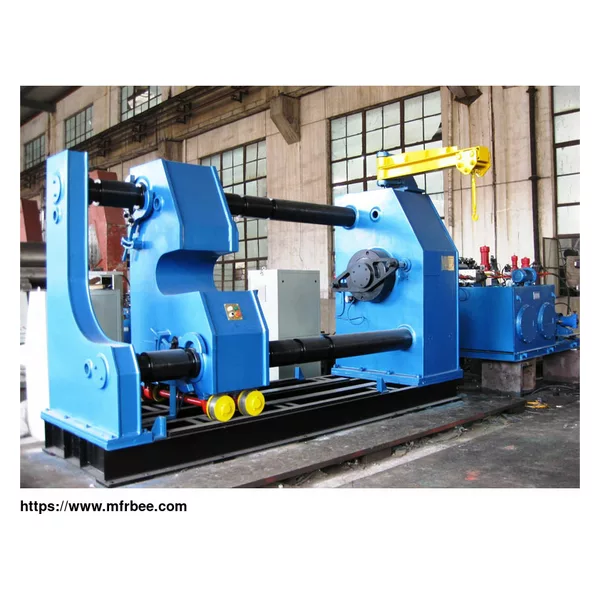

Horizontal Axle Press

The horizontalwheel press machine is the installation equipment for the rolling bearing of the railway vehicle system. Its main purpose is to press the rolling bearing to the wheel journal by cold pressing. The press is composed of a body, a hydraulic station, and a console. The hydraulic station and the console should be arranged close to the host. The rigid rails on the site and the guide rails on the body should be connected evenly.

EZHONG specializes in the production ofhorizontal press machine and axle press equipment. It has almost 70 years of production experience and technology. On the basis of absorbing foreign advanced technology, it has developed equipment with its own characteristics. The machine is simple and convenient to operate, has high processing accuracy, and will not crush the bearings.

The Specification OfHorizontalHydraulic Press Machine

The Details Of EZHONG Horizontal Axle Press Machine

Machine tool composition: Machine front fixed beam, movable beam, after the support, chassis, hydraulic system, car device, electrical system is composed of the main parts.

Safety protection:

1. When the system overvoltage, with pressure relay shutdown protection and overflow protection.

2. Install an emergency stop button at each of the fixed beam and console locations.

3. The safety system of mechanical and electrical equipment and control conforms to the national standards of China or corresponding standards, and the safety interlock system is reliable.

4. The oil is cooled by air. When the oil temperature reaches 60 °C, the equipment will automatically alarm and stop.

Notes Of EZHONG Horizontal Axle Prss Machine Operation Process

1. Check whether the equipment is placed horizontally and the power supply is safe.

2. Check whether the hydraulic oil is in place and the circuit is not damaged.

3. Start the motor and check whether the rotation direction of the motor is correct.

4. Jog the hydraulic system to check that there is no leakage or abnormal sound in the hydraulic system.

5. Run the hydraulic system with an empty vehicle to drain the air in the system.

6. Adjust the workbench according to the motor stator, press-fit and debug, so that the equipment meets the press-fit requirements.

7. After the normal press-fitting work, pay attention to the maintenance of the equipment.

8. This horizontal axle press machine produced by our company requires a relatively high press-fitting accuracy, and the equipment is equipped with a pressure and stroke tester.

You can see the progress of the press on the screen, which is very accurate. In addition to the equipment's own program control, the requirements of the operator must be serious. To improve

For the service life of the wheel and axle press, we must strictly operate the equipment correctly.

The Advantages Of Horizontal Axle Press

The operation is simple and convenient, high efficiency, time-saving, labor-saving, and cost-saving.

The high precision of press-fitting concentricity ensures a high qualified rate of products produced.

The stroke of the press can be adjusted according to the large size of the press-fitting parts, no matter how big the product is, it can be press-fitted.

The equipment pressure can be adjusted at any time, and the user can adjust the pressure system of the machine according to the approximate pressure required by the press.

The professional hoisting structure is made to facilitate the movement of the equipment at any time.

All kinds of fixtures are equipped at the factory, which is convenient for users to press-fit all kinds of axles and bearings.

The whole machine adopts integral steel plate welding, which is thick and beautiful, and has good stability.

The whole machine adopts integral steel plate welding, which is thick and beautiful, and has good stability.

The Application Of Horizontal Axle Press

This machine is suitable for metallurgy, mine machine repair, machine manufacturing and large motor manufacturing, mainly used for large shaft parts of the pressure assembly and disassembly work.
