Types OfPress Machine For Sale

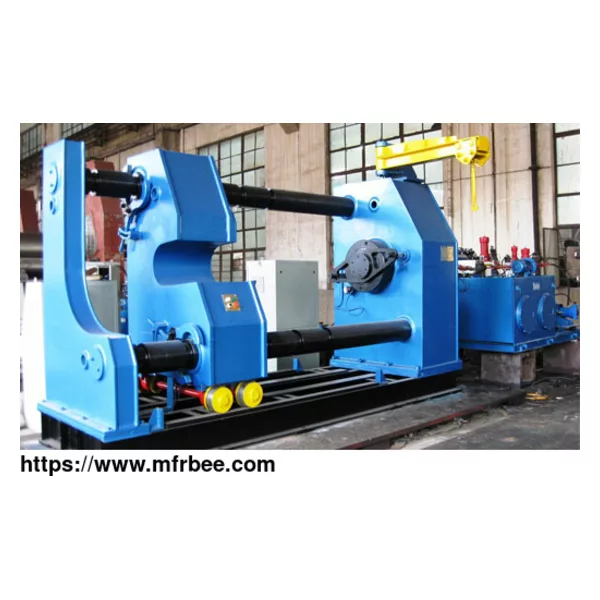

Horizontal Axle PressHorizontal Axle Press



Hydraulic PressHydraulic Press



How Does A Press Machine Work?

EZHONG press is composed of the main engine and the control mechanism, which are connected by the main pipeline and electrical devices to form a whole. The main engine includes a fuselage and the main cylinder. The structure and functions of each part are now introduced as follows:

The fuselage is a C-shaped single-arm structure, with wall panels on both sides, waist panels and reinforcing ribs welded together to form a rigid truss. The oil cylinder and the worktable are connected with the machine body by bolts, and there is a blanking hole in the center of the worktable. The indenter is connected to the piston rod through a thread.

The main oil cylinder is a double-acting piston-type oil cylinder, and the bottom of the cylinder is a closed-bottom integral structure. The piston head is installed in the cylinder body. On the outer ring of the piston head, there are an upward and downward import UN-shaped sealing ring and the cylinder wall. Seal; so that the upper and lower oil chambers are formed in the cylinder.

A guide sleeve is installed at the cylinder port to ensure good guiding performance when the piston moves. Two UN-shaped sealing rings are installed in the inner hole of the guide sleeve, and an O-shaped sealing ring is installed on the outer circle of the guide sleeve to ensure the sealing performance of the cylinder port. The end of the cylinder mouth is connected by bolts, and a dust ring is installed at the end to prevent dirt from entering the cylinder and keep the oil clean.

The equipment that uses hydraulic transmission technology for pressure processing can be used to complete various forging and press forming, such as forging of steel and forming of metal structural parts.

What Is The Use Of Press?

EZHONG is a professional manufacturer of press machines. At present, China's largest horizontal axle press machine is manufactured by EZHONG. EZHONG's horizontal axle press machine and single-arm hydraulic press machine have absorbed the advanced technology from Germany and Japan. They are machines with EZHONG's independent intellectual property rights and have a strong technical force. Its machines are widely used in railway locomotives, metallurgy, iron and steel, mining, machine repair, machine manufacturing, and large-scale motor manufacturing industries. They have a wide range of uses, high production efficiency, and high safety systems.

Why Choose EZHONG Press?

- The hydraulic system is located inside the machine body, with a beautiful appearance, simple and convenient operation, high efficiency, time-saving, labor-saving, and cost-saving.

- This series of presses are equipped with independent hydraulic and electrical control systems, using buttons for centralized control, which can realize two molding processes of fixed stroke and fixed pressure, and have functions such as pressure display, stroke, and pressure adjustment.

- The four-pillar guide pillar is oriented to improve the accuracy of the product, and the pillar and piston rod are plated with copper and hard chromium after quenching to ensure the wear resistance and high roughness of the surface. The oil pump inlet is equipped with a unique filter device to ensure The service life of oil pumps and valves.

- The oil connection adopts an imported high-pressure hose, which greatly reduces machine noise.

- The whole machine adopts integral steel plate welding, which is thick and beautiful and has good stability.

- Manufactured in accordance with EC safety standards and has CE certification.
