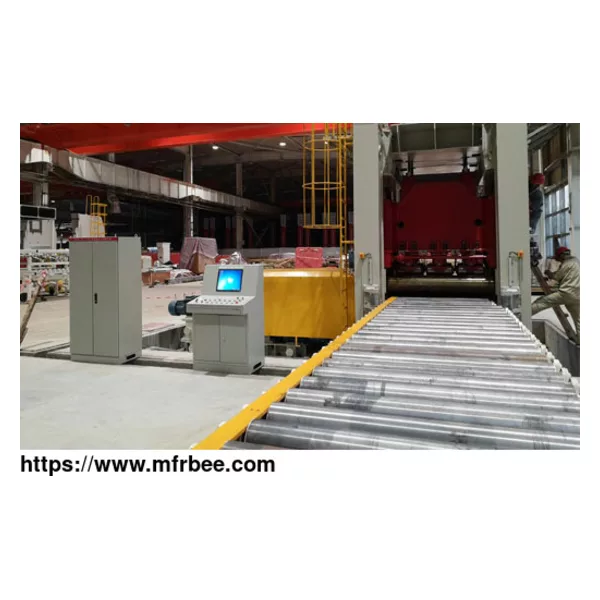

W43B Leveling Machine

EZHONG W43Bsheet leveler

Types Of W43B Leveling Machine For Sale

13 Rolls Levelling Machine

15 Rolls Levelling Machine



Working Principle Of W43B Leveling Machine

Working Principle Of W43B Leveling Machine

Using a closed frame, the corrective force is enclosed inside, the frame is simple in appearance, the overall rigidity is good, and the foundation can be leveled with full load;

The depressing corner mechanism and the corner mechanism are combined together, using group technology, using two sets of the same power system, using YEJ type motor drive, so that the movable beam can accurately and automatically position and quickly swing angle;

Working Principle Of W43B Leveling Machine

The upper and lower support digs are multi-row diameter supports, arranged with the working spokes in an up and down arrangement. The bottom is equipped with an integral inclined iron adjustment mechanism. Manual fine-tuning is used to adjust the upper and lower leveling and braiding spokes to maintain the rigidity of the work roll and level the thin plate. When wavy bends, convex-concave buckling, and buckling are deformed, support spokes are needed to change the convexity of the working spokes, and the opening amount and inclination angle of the upper leveling spokes can be manually adjusted, which can easily adapt to the correction requirements of wavy bends and scoop-shaped plates.

Working spoke journals all adopt self-aligning needle roller bearings for rolling mills. Compared with copper sleeves, they have high transmission efficiency, long service life, the low frictional resistance of working spokes, greatly improved non-slip conditions, and can straighten thinner steel plates.

Advantage of EZHONG W43B Leveling Machine



Using a large number of advanced manufacturing technologies to carry out SOLIDWORKS full three-dimensional digital design, etc.



PLC+touch screen+button, all working parameters can be set in the man-machine interface, with parameter memory, storage, power-off memory functions.



Human-machine interconnection, the control system of this machine has the functions of storing, recalling and editing process and equipment parameters. When in use, the inlet and outlet reductions can be set according to parameters such as plate thickness, plate width, material strength, etc., to realize automatic adjustment.



Automatic adjustment device for the opening of the leveler. Before the plate enters the leveling machine, the plate thickness, width, and material are measured by scanning the plate information processing unit, and the signal is transmitted to the electrical control cabinet. The opening amount calculation is automatically performed, and the opening amount of the machine is adjusted. The value is confirmed after correction. Make adjustments again.
