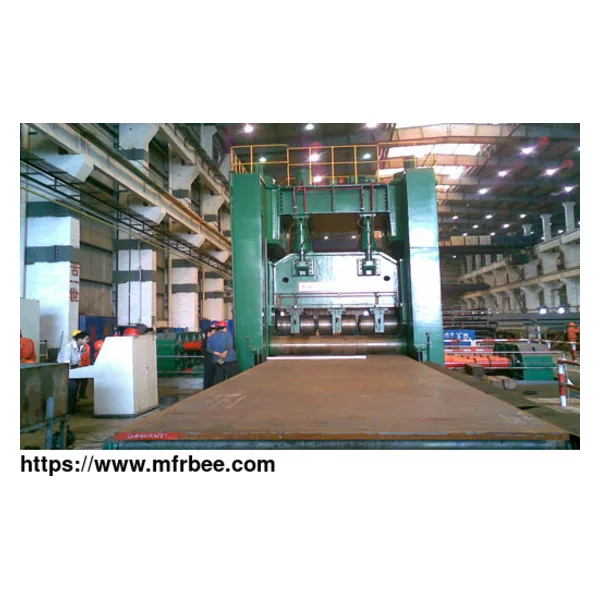

W43T Leveling Machine

EZHONG specializes in the production of heavyplate leveler, composite plate levelers, high-strengthplate straightening machines

Types Of W43T Leveling Machine For Sale

7 Rolls Levelling Machine

9 Rolls Leveling Machine



Working Principle Of W43T Leveling Machine

1. The patented technology of sub-roller drive is adopted to eliminate the mechanical interference and negative torque phenomenon between the rollers and various problems arising therefrom, prolong the life of the work roll and protect the surface of the workpiece.

2. The sub-roller drive enables the medium and heavy plates to also realize the linear decompression leveling method, which conforms to the steel plate leveling law and achieves the required leveling accuracy. Due to the gradual decrease in the amount of bending, compared with the large-deformation leveling method of parallel bending, the total deformation of the material is reduced, and the total leveling force and total power consumption are reduced, which saves energy.

3. Adopt an integral closed frame, the ribs are arranged reasonably in the four-corner large arc transition, the rigidity and strength are good, and the appearance is beautiful and the lines are smooth.

4. All rolling bearings, worm gearboxes, screw rods, and other motions are centralized lubricated by two-line electric oil feeders, and there is no alarm safety device.

Advantage of EZHONG W43T Leveling Machine



Advance CNC control system, we have software copyrights on this system. The system automatically calculate pressing amount according to the thickness.

Sectional housing. The machine adopt Germany SMS company technology. It can save energy. Because it adopt grouping driving patents and self-aligning bearings, so the main motor has small power.

Adopt driving patent. It devides the working rollers into two groups. Each group pf working rollers are driven by one motor and a reducer so that it has high efficiency.



The whole structure is sectional modularity. Some quick-wear parts such as bearings, seal-ring, back up roll, working roller, etc are conveniently to replace.
