Collated Nails

Common nails

34 Angel Degree Collated Framing Nails with Paper Strip:

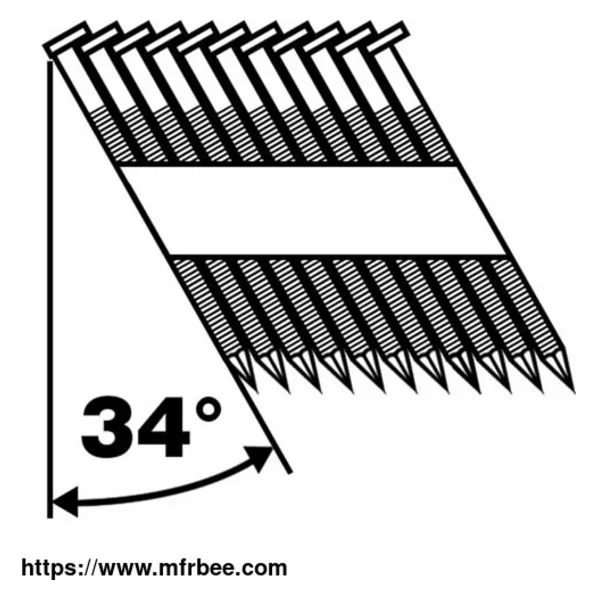

Figure No.1: 34 Degree Angle Collated Wire Nails, with Wire Diameter 2.87mm

34 degree paper collated framing nails are made with the diameter ranging from 2.87mm to 3.33mm. It is widely used in framing, decking, sub-flooring construction, pallet construction work, etc
Nails Diameter:0.113"-0.131"
Nail Lehgth:2"-3-1/2"
Collated Angle:34 degree
Surface treatment: Bright, Electro galvanized, hot dipped galvanized.
Shank types:Smooth,ring,screw
Material:Mild steel, high-carbon steel, stainless
Point Types: Diamond,chisel,blunt,no-point,clinch-point

28 Degree Paper Collated Nails for Framing Uses: (Figure No. 2)

Figure No.2: 28 Angle Round Head Smooth Shank Collated Nails

This type of collated framing nails are suitable for roofing, wood construction, door and window frames, furniture frames, case construction, etc.
Nails Diameter:0.113"-0.131"
Nails Length:2"-3-1/2"
Collating Angle:28 degree
Surface treatment, shanks, material and nails point types: same as 34 degree collated nails.

21 Angle degree Collated Framing Nails: (Referring to Figure No. 3)

Figure No.3: 21 Angel Collating Wire Nails for Roofing and Furniture Frames

Wire Diameter:0.113"-0.131"
Nails Length:2"-3-1/2"
Collating Angle:21 degree
Shank types: Smooth,ring,screw,twist,barbed

17 Degree Plastic Collated Nails:

Figure No. 4: 17 Angle degree plastic collated wire nails

Angel 17 and 21 collated iron nails have the same wire diameter, length, material, shank types and surface treatment types. The only difference between them are the collated angles.
