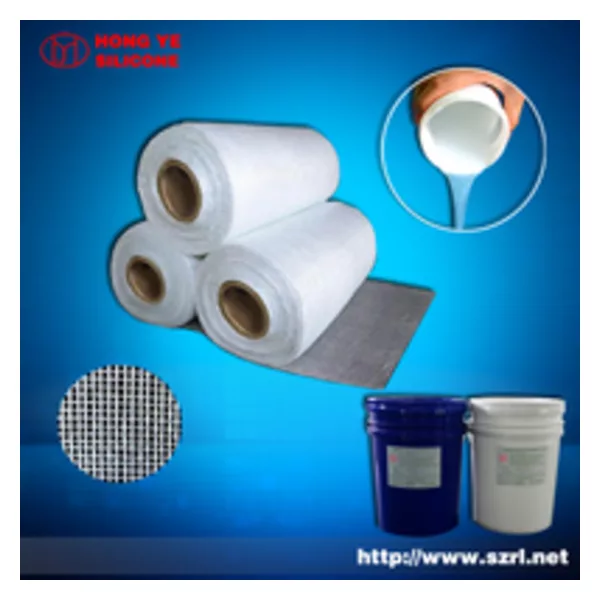

silicone rubber for coating textile Application:
silicone rubber for coating textile is specially used for skid-proof purpose of frilals, underclothes and widely applied for cotton fabric, polyester-mixed cotton cloth, nylon cloth, flax, woolen, insulating cloth, etc.
silicone rubber for coating textile Specification:
1) long working time during room temperature,
2) Vulcanizing quickly under high temperature,
3) Non heavy metal and solvent, non-toxic and innocuity to human body.
4) Excellent third dimension and softness after using the silicone rubber to the textile.
silicone rubber for coating textile Datasheet:
Model | TB3130 |
Appearance | Transparent |
Hardness(shore A) | 30±2 |
Mix ratio(A:B) | 1:1 |
Viscosity(mPa.s) | 60000~100000 |
Tensile strength(Mpa) | 4.6 |
Tear-strength(KN/m) | 19±2 |
Elongation(%) | 360 |
Pot life/working time(25°C) | 12-24 hours |
curing time(100-120°C) | 10~20(mins) |
silicone rubber for coating textile Operation guideline:
1) Stirring A and B to uniformity before using.
2) Mixing A and B component according to A: B = 1:1 by weight or volume, coating the mixture on the textile or socks.
3) Baking the textile or socks in drying oven for 1-3min.
silicone rubber for coating textile Shelf life:
8-10 months when stored under 24°C in original unopened packages.
Any questions,please feel free to contact kaka:
TEL : 086-755-89212365
FAX : 086-755-89948030
MOBILE :086-18938867528
Website: www(dot)szrl(dot)net
E-MAIL:hyk(at)resinpu(dot)com
8 �in��O3style="width:51.3500pt; padding:0.7500pt 0.7500pt 0.7500pt 0.7500pt ; border-left:none; ; mso-border-left-alt:none; ; border-right:0.7500pt solid rgb(204,204,204); mso-border-right-alt:0.7500pt solid rgb(204,204,204); border-top:none; ; mso-border-top-alt:0.7500pt solid rgb(204,204,204); border-bottom:0.7500pt solid rgb(204,204,204); mso-border-bottom-alt:0.7500pt solid rgb(204,204,204); background:rgb(255,255,255); " >4.2Mpa
26kN/m
35000
≤0.7%
440%
Wacker®M4503
white
100 : 5
30-90
10-20
25
5.0(N/mm²
> 20N/mm
40000
≤0.5%
350%
SmoothonMoldMax®25
white
100 : 5
45
24
25
577psi
130pli
25000
002 in./in.
375%
RTV molding silicone rubber for plaster products operation way:
Step One:Take 100g of part A and add 2g of part B and mix the silicone rubber and curing agent evenly.
Step Two: vacuum pumping.Without exception, this step takes less than 10 minutes.
Note: The time for vacuum-pumping should be less than 3—5 mins , otherwise, once the silicone rubber has cross-link reaction during vacuumizing, it will not be operated.
Step Three: Brushing cast & Perfusion Molding operation
RTV molding silicone rubber for plaster products frequently asked question:
Why is the silicone rubber mold oily?
Basically, molding silicone rubber doesn't contain any oil, so it won't be oily. The reasons for the oily molds can be deducted from the below 3 factors:
1. Added white oil, which is the compound of silicone oil and white oil. The white oil is not silicone oil but a kink of petrochemicals;
2. Added too much silicone oil. Normally, we donot advise our customers to add any silicone oil into silicone rubber. If necessary, the ratio must be 5%-10%;
Need any help on silicone rubber, please feel free to contact Ms kaka:
Tel:86-755-89212365
Mob/Whatsapp:86-18938867528
E-mail: hyk(at)resinpu(dot)com
Skype:hyk(at)resinpu(dot)com
