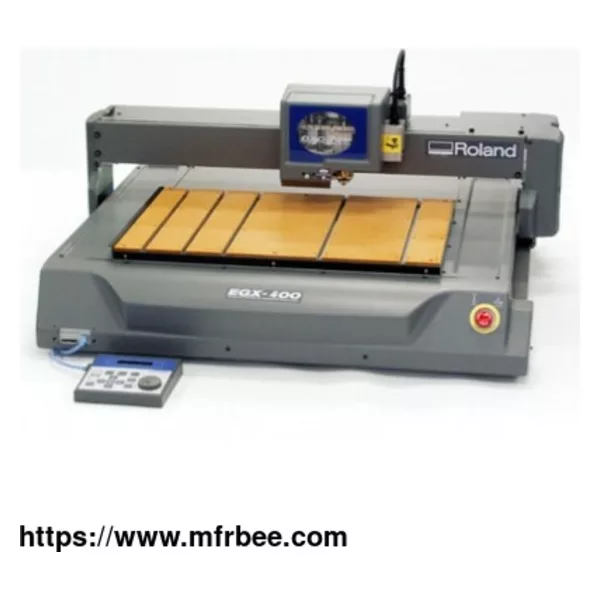

Roland EGX-400 CNC Engraving Machines (MITRAPRINT)
Product Quick Detail
- FOB Price
- USD $3,800.00 / Piece
- Place Of Origin
- Indonesia
- Minimum Order
- 1
- Packaging
- Box
- Delivery
- 4 Days
Specifications
EGX-400 & EGX-600 Professional Rotary Engravers
- Roland High Speed Engraving (HSE)
- DC Servo brushless motors on all axes for unmatched precision
- Spindle speed up to 30,000 rpm
- 2D and 3D CNC engraving machine
- Includes software
- Optional ADA signage kit available
High-Speed Engraving Speeds up Profits
The EGX-400 and 600 CNC engraving machines operate at a spindle speed of up to 30,000 RPM and engrave a wide variety of materials, including wood, urethane foam, plastic, acrylic, and light metals such as brass and aluminum. This speed and versatility of materials offers you amazing potential for applications and profit.
Distinguishing Features
- 2D and 3D Engraving
- 30,000 rpm spindle for high torque and low vibration
- Digital AC Servo brushless motors on all axes
- Engraving software included
- Optional ADA Signmaking Kit available
- 2-Year Trouble-Free Warranty
Power Forward with Speed and Efficiency
The EGX Pro series owes its amazing speed and precision to digital AC Servo brushless motors on all axes and Feed Forward Processing (FFP). The servomotors generate plenty of torque for smooth, fast engraving, while FFP technology anticipates tool paths for outstanding accuracy and energy efficiency. Spindle speed can be varied between 8,000 and 30,000 rpm for engraving the widest variety of materials.
Bundled Software Simplifies Engraving
3D Engrave
Intuitive program for producing 3D reliefs.
MODELA Player CAM
Process DXF and STL files created with popular 3D CAD programs.
Virtual MODELA4
Simulate finished shapes for previewing on your computer screen before beginning production.
Dr. Engrave
Features include TrueType fonts and an automatic layout function for importing Excel and CSV databases for fast engraving of product serial
numbers, nametags and for entire door-numbering projects.
R-Wear Studio
Quickly and easily create rhinestone templates for profitable decorated apparel and bag applications. R-Wear Studio includes a library of 500
hot-fix rhinestones and a job cost display, allowing you to calculate profits and manage rhinestone inventories.
High Productivity Features
The EGX Pro offers multicast capability that allows you to connect multiple EGX engraving machines together and control the entire production process in-house with an application, maximizing your investment and resources. A removable memory card stores programmed files for repeat jobs without tying up your computer, while a separate teaching feature sends operating commands directly from the control panel to the machine. Commands can be saved in the built-in memory or on the memory card.
Unmatched Reliability and Support
The EGX Pro is built with superior Roland DG design and manufacturing, to give you years – and even decades – of reliable service. Unmatched customer service and technical support, including a comprehensive Two-Year Trouble-Free Warranty come standard. Roland DG international ISO certifications are your guarantee of superior quality.
| MODEL | EGX-400 | EGX-600 |
|---|---|---|
| Max. cutting area |
16"(X) x 12" (Y) x 1.57" (Z) (407 mm (X) x 305 mm (Y) x 42.5 mm (Z)) |
24" (X) x 16" (Y) x 1.57" (Z) ( 610 mm (X) x 407 mm (Y) x 42.5 mm (Z)) |
| Acceptable material thickness | 1.575" (40 mm) | |
| XYZ motor | AC servo motor (DAC-FFP) | |
| Feed rate | XY-axis : 0.5 mm/sec. , 1~100 mm/sec. Z-axis : 0.5 mm/sec., 1~50 mm/sec. | |
| Acceleration | 0.1 G , 0.05 G | |
| Software Resolution | .00039"/step (0.01 mm/step) | |
| Mechanical Resolution | XY-axis : .0001"/step (0.003 mm/step) Z-axis : .00009"/step (0.0025 mm/step) | |
| Spindle motor | DC brushless motor Max. 72 W | |
| Revolution Speed | 8,000 - 30,000 rpm | |
| Tool chuck | Cutter holder or Collet system | |
| Positioning accuracy | ± 0.1 % of distance traveled, or ± .0039" (0.1 mm), whichever is greater (Under no-load conditions) | |
| Repeat accuracy | .0020" (0.05 mm) | |
| Display | Liquid crystal display unit (with back light) | |
| Control Keys | MENU , ENTER / PAUSE , SPINDLE , XYZ ORIGIN SET , XYZ Cursor , FAST FEED , COPY , Dial | |
| Interface | Parallel (in compliance with the specification of Centoronics) Serial (under RS-232C standard) , External connector 1 , External connector 2 | |
| Buffer size | 2 MB | |
| Power Supply | 100 , 117 , 230 , 240 V ± 10% | |
| Power Consumption | 350 VA | |
| Dimensions | 31" (W) x 28" (D) x 20.5" (H) (795 mm (W) x 719 mm (D) x 521 mm (H)) | 39" (W) x 32" (D) x 20.5" (H) (995 mm (W) x 820 mm (D) x 521 mm (H)) |
| Weight | 112 lb (51 kg) | 141 lb (64 kg) |
| Operation Environment | Temp: 41° - 104° F (5° - 40° C) Humidity: 35 to 80% (no condensation) | |
| Accessories |
Control panel , Control panel cable , Power code , Nose unit , Solid collet (φ4.36 mm) , Clamp , Spanner (17 mm , 10 mm), Hexagonal screw driver , Hexagonal wrench , Roland Software Package CD-ROM , User's manual |
