Featuring with industrial-gradeIPQ4019/4029 chipset
Integrated with 2x 2 5G high power Radio module and 2x2 2.4G high power Radio module
Support 4.940GHz to 5.825GHz Frequency Range
Support 2.400GHz to 2.482GHz
Support 2 x 5G MMCX Connectors and 2x2.4G MMCX
Support 5MHz/10MHz/20MHz/40MHz/80MHz Bandwidth
Support 11ABGN/AC
Support fixed data rate
RoHS compliance ensure a high level protection of human health and the environment from risks that can be posed by chemicals
Our Firmware supports all the modules of Quectel
https://www.wallystech.com/Routerboard/DR40X9-Qualcomm-IPQ-4019-4029-DUAL-BAND-802.11AC-WAVE2-MU-MIMO-ONBOARD-WIFI-RADIO-EMBEDDED-BOARD-supporting-LTE.html
Email: william@wallystech.com
Symbol | Parameter |
CPU | IPQ4029 |
Antenna Connector | 2 x 5G MMCX connectors;2x2.4G MMCX |
10/100/1000Mbps Gigabit Ethernet | 2xRJ45 |
SFP connector | 1xSFP fiber module connector (optional) |

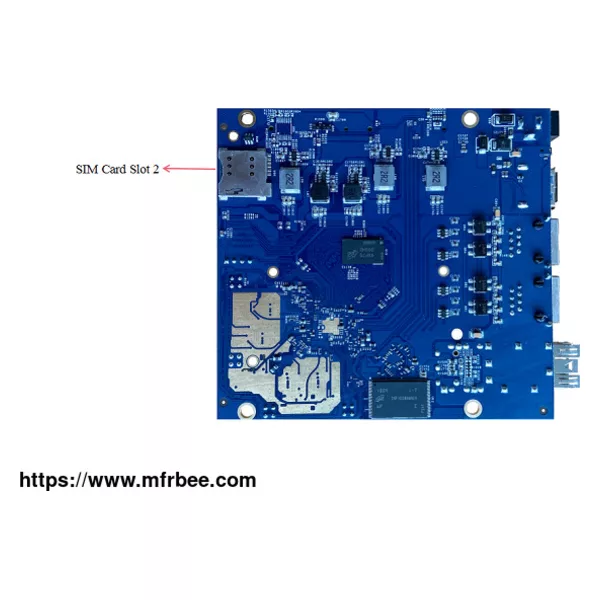

3G/4G connector | 1xminipcie 3G/4G connector support with two sim card |
USB connector | 1xUSB 3.0 connector |
POE | 24V~48V passive POE |
DC Jack | 24V~48V power supply |
ROHS Compliance | YES |
Dimension | 115mm x 105mm x 16mm |
Max Power | 48.1V x 0.180A= 8.658W |
Nor Flash | 2MB~32MB |
Nand Flash | 128MB |
DDR | 256MB~512MB |
Featuring withindustrial-gradeIPQ4019 chipset Integrated with 2x 2 5G high power Radio module and 2x2 2.4G high power Radio module Support 5.180GHz to5.825GHz Frequency Range; Support 2.412GHz to 2.482GHz Support 2 x 5G MMCX Connectors and 2x2.4G MMCX 20MHz/40MHz/80MHz ...
