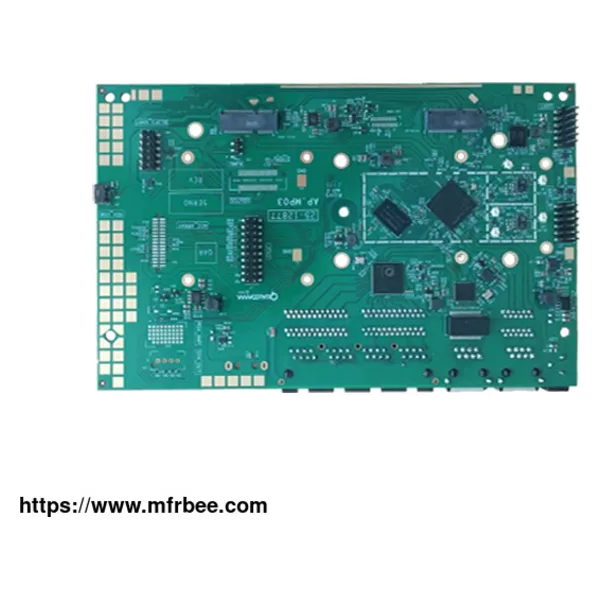

DR5018 11ax 2.4G 2T2R router board IPQ5018
Product Quick Detail
- FOB Price
- USD $500.00 / Piece
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- 50 pcs per box
- Delivery
- 15 Days
Specifications
Dual-core ARM 64bit A53@1.0GHz Processor
512MB DDRL3L System Memory
4MB NOR Flash, 128MB NAND Flash
2x2 On-board 2.4GHz radio,up to 573Mbps physical Data Rate
Support BT5.1
Two PCIe2.0 connector can support QCN90XX production
https://www.wallystech.com/Routerboard/DR5018-wifi6-Qualcomm-IPQ5018-2T2R-2.5G-ETH-port-802.11AX-MU-MIMO-OFDMA-supporting-QCN9074-wifi-card.html
Email:william@wallystech.com
wallystech - YouTube
| Symbol | Parameter |
| CPU | Qualcomm-AtherosIPQ5018 |
| CPU Frequency | Dual-core ARM 64 bit A53 @1.0 GHz processor |
| System Memory | 512MB DDR3L 16-bit interface with 32-bit memory bus design |
| Ethernet Port |
4 x 1Gbps Ethernet Ports or 1X2.5Gbps Ethernet Port；
1 x1Gbps Ethernet Port |
| NGFF Slot | 2 X M.2 (NGFF) “E Key” Socket with MiniPCIe 2.0(For WiFi Module) |
| EMMC | 4G/8G(optional) |
| USB /header | 1x USB 3.0 Port |
| POE | NA |
| DC Jack | 12V power supply |
| LED header | LED for power ,Wifi strength |
| Serial Port | support |
| Wireless |
On-board 2x22.4GHz MU-MIMO OFDMA 802.11b/g/n/ax,max 23dBm per chain
2x IPEX Connectors |
| Bluetooth | BT5.1 |
| Nor Flash | 4MB |
| Nand Flash | 128 MB |
| DDR | 512MB |
| Dimension | 185mm x 116mm |
- Country: China (Mainland)
- Business Type: Manufacturer
- Market:Africa,Americas,Asia,Europe,Oceania
- Founded Year:2010
- Address:116 ChengYang Road, XiangCheng District, SuZhou City,JiangSu Province, China
- Contact:Shine Chen
