N-BK7 H-K9L JGS1 110 degree powell lens 450nm
Product Quick Detail
- FOB Price
- USD $25.00 / Piece
- Minimum Order
- 1
- Place Of Origin
- CHANGCHUN
- Packaging
- 50PCS
- Delivery
- 15 Days
Specifications

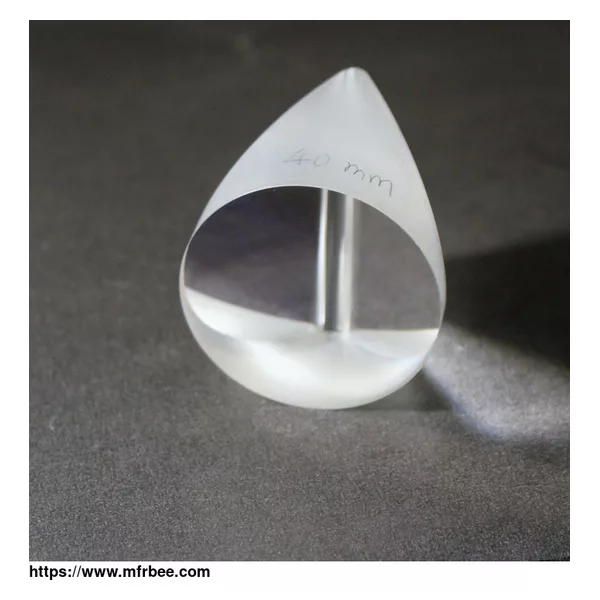

Powell lens is a Laser Line Generator Lenses, which optimally draws into a straight line with good optical density and better stability.After leading the laser beam to pass through. It can also
remove the The central hotspot of the Gaussian beam.
| Material: | H-K9L JGS1 UV Fused Silica |
| Diameter | Standard 9mm+0.00/-0.05 or 3mm to 60mm customized |
| Fan angle | 2-110degree |
| Beam diameter | 0.5-5mm or bigger |
| Uniformity | >80%(High Precison) |
| Straightness of line | 99.9%(High Precision) |
| Design wavelength | 385-1064nm |
| Surface Quality | 40-20 |
| Coating | AR Coating on request |
| Rohs | Compliant |
