Pipe End Beveling Machine

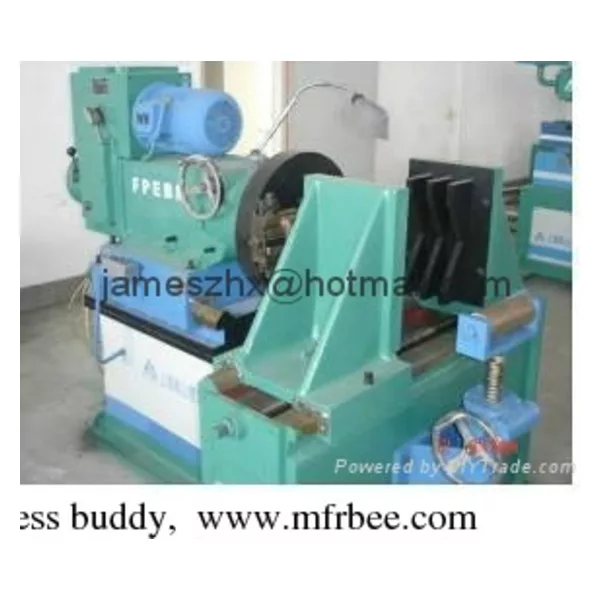

Fixed-type Radial Pipe End Beveling Machine
 Model: FPEBM-24A1/A2；FPEBM-16A1/A2
 Performance features
 On-line Performance: Good(Designed as per the one line equipment of the production line)
 Beveling Capacity: ≤5Min /pipe bevel (DN200 SCH40)
 Bevel cutting: cutting a pipe with other equipment such as band saw and then machining each bevel.
 Bevel quality: very good
 Mobility: low
 Application: for machining the U or V shape bevels for numbers of pipes with thick wall
 Price: lower than the Fixed-type Highly-efficient Pipe Cutting & Beveling Machine
 Technical parameters
 Pipe diameter applicable: DN100～600(φ114～610);DN50～400(φ60～426)
 Pipe wall thickness applicable: 6～180MM;6～90MM
 Materials applicable: carbon steel, alloy steel, stainless steel and cryogenic steel,ect.
 Bevel shape: Ｕ, Ｘ, Ｖ and two Vs
 Cutting direction: lengthwise
 Driven by: motor
 Clamping system: work piece is clamped by hydraulic cylinder/manual screw clamping; manual screw clamping
 Bracket system: screw lifting and lowering manually
 Rev of the principal axis: 9 shifts;3 shifts
 Lengthwise displacement: 150MM (principal axis), 300MM (machine head); 80MM (principal axis), 100MM (machine head),
 Widthwise displacement: ±100MM; ±50MM
 Control system: gear shift and manual control
 Length-measuring system: Nil
 Automatic aligning: An end beveling machine conveying system equipped with lifting and lowering device could be provided if necessary to adjust automatically the center elevation of the pipe, so as to bevel the pipes with different diameters.
 Conveying system: End beveling VF conveying systems driven by motor are equipped at front and rear sides of the beveling machine if necessary.
