Expanded Metal Machine for Expanding, Pressing, Flattening, Shearing, Cutting / Slitting

PuRuiSe manufactures and exports Production Line and Machines for producing of Expanded Metal of various materials and types. Mainly three steps involved in Expanded Metal Processing: Expanding, Flattening and Shearing. Expanded Metal is manufactured by expanding press from basic metal plates. Simultaneously slit and cold-formed, the steel or other metal sheets expands the slits into diamond shaped openings of uniform size and regularity. By expanding a metal plate in a press, the metal stretches, leaving diamond-shaped voids surrounded by interlinked bars of the metal. The most common method of manufacture is to simultaneously slit and stretch the material with one motion. Then the metal mesh sheets are flattened, then cut by a shearing / slitting machine into sheet of sizes.

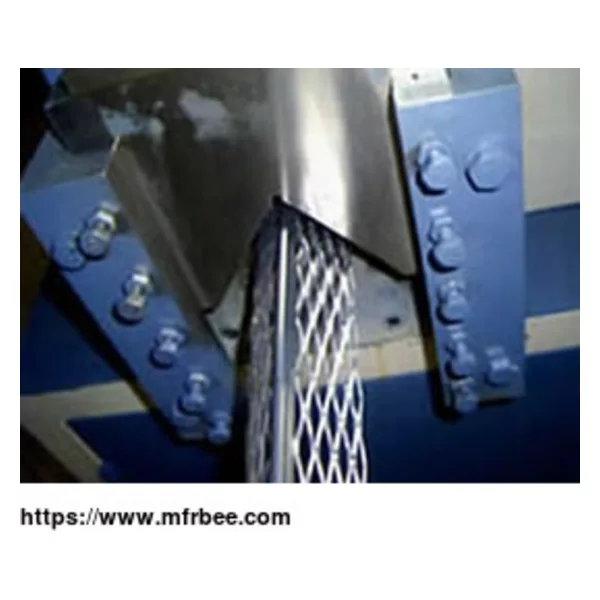

Automatic Expanded Metal Press

PuRuiSe expanded metal press is designed to process carbon steel, galvanized steel, stainless steel, aluminum, and a variety of coppers. With automatic control and auto feeding system, our machines have been exported to over 30 countries and regions: Thailand, U.A.E, Indonesia, Italy, Ukraine, Turkey, Australia, Mexico and etc.

CNC Plate Shearing Machine

Automatic CNC cutting machine for shearing (cutting) of color steel plate, stainless steel plate, GI metal plate, welded wire mesh, chemical fiber felt, rubber division strip, expanded metal mesh, cold rolling steel plate.
This machine has electric operation, automatic feeding, saving time and labor with following advantages:

Auto Feeding, feeding distance and speed can be adjusted;
Leveller be available;
Splitting to strips available;
Cutting, level, Splitting, Bending options at choice;
Touch screen operation, easy and clear.

Metal Mesh Flatten Machine

Expanded metal mesh flatten machine is special designed for expanded metal flattening. It’sa necessary equipment for expanded metal production. It can make expanded wire mesh smoothly.

Flattening machine in different width and different designs are supplied. We supply four-roller flatten machine, two-roller flatten machine, manual flatten machine, hydraulic flatten machine, etc. Currently the machine isapplied to processing expanded metal with a maximum sheet thickness of 5mm and width between 0.5m to 2.5m.

Machine Models for Setting Up Manufacturing Factories in Ukraine, Turkey, Syria, Australia, Brazil, UAE, Iran, India

Aluminum Expanded Mesh Machine for Ukraine

Suitable for aluminum meshes production

AMM-U18 Model Aluminum mesh machine is designed to produce aluminum expanded meshes from rolled (coiled) aluminum strips. This mesh machine is supplied with punching tools.

Technical Data

The aluminum expanded meshes

Fish-scale aluminum mesh

Aluminum Expanded Mesh, Fish Pattern, Size 1.3 x 3.4 x 3.8 x 5.8mm
