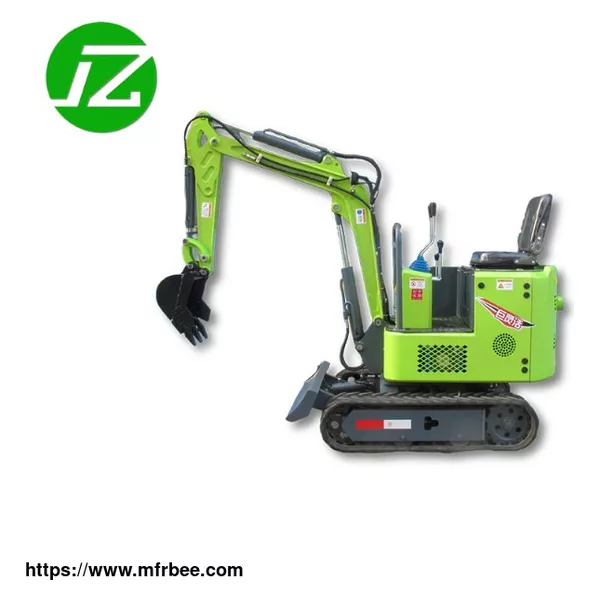

Electric Miniature Excavator

JZ Electric Engineering Vehicles on the construction site has the following characteristics: heavy load, scientific design, convenience and flexibility.

Small size and flexible movement of Electric Miniature Excavator: The JZ Electric Engineering Vehicles are reasonably designed, compact and flexible, and could be delivered to every place and every corner, so it could easily cope with various occasions.

Scientific design saves time and effort of Electric Miniature Excavator: the load capacity of the JZ Electric Engineering Vehicles are three times that of the ordinary man-powered dump truck, and the efficiency is increased by more than 50%, greatly reduce labor costs, making it an essential equipment for construction sites.

The speed of the differential electric box is adjustable: brushless differential motor, more flexible turning, stable and durable performance. Low noise and vibration levels of JZ Electric Engineering Vehicles ensure excellent operator comfort along with reduced environmental impact.

High-quality materials of Electric Miniature Excavator are strong and durable: The body of JZ electric engineering vehicles are made of high-quality materials, reinforced steel bars, strong and durable, bearing compression and corrosion resistance.

Main Features of Electric Miniature Excavator:

JZ-III01 electric miniature excavator is a crawler hydraulic excavator, it is earth-moving machine that use buckets to excavate materials above or below the bearing surface and load them into transportation vehicles or unload them to the stockyard. The excavated materials are mainly soil, coal, sediment, and loosen soil, rocks, ice and snow. Miniature excavator is suitable for narrow site, a place that is inaccessible to large machines. Greatly reduce the labor cost.

Technical Parameter of Electric Miniature Excavator:

Model：JZ-III01

Overall Dimension：2550 x 930 x 2050mm

Color：Customized

Chassis Width：950mm

Track Width：18mm

Curb Weight：950Kg

Engine / Motor：1.5Kw

Driving Mode：Crawler-type

Rotation Mode：Steering wheel

Rotation Angle：360°

Gradeability：35°

Brake System：Drum brake

Power System：Hydraulic drive

Lithium Battery：70V140Ah

Bucket Capacity：0.03㎥

Scoop Width：400mm

Digging Height：2350mm

Digging Depth：1500mm

Excavation Radius：2500mm

Discharge Height：1750mm
